Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Radio Frequency Protocol | Navigation | |
| Frequency Classification | UHF (1GHz ~ 2GHz) | |
| Band Center Frequency | 1.575GHz | |
| Operational Hz Spectrum | 1.574GHz ~ 1.576GHz | |
| RF Antenna Design | Module | |
| Frequency Band Quantity | 1 | |
| Voltage Standing Wave Ratio | 2 | |
| Reflection Loss dB | - | |
| Amplification Factor | 28dB | |
| Maximum Power Handling | - | |
| Key Product Highlights | Cable - 5m, LNA, Filter | |
| Circuit End Method | SMA Male | |
| Dust Water Resistance Rating | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Magnetic | |
| Upper Height Limit | 0.524" (13.30mm) | |
| Intended Uses | GPS |
Description

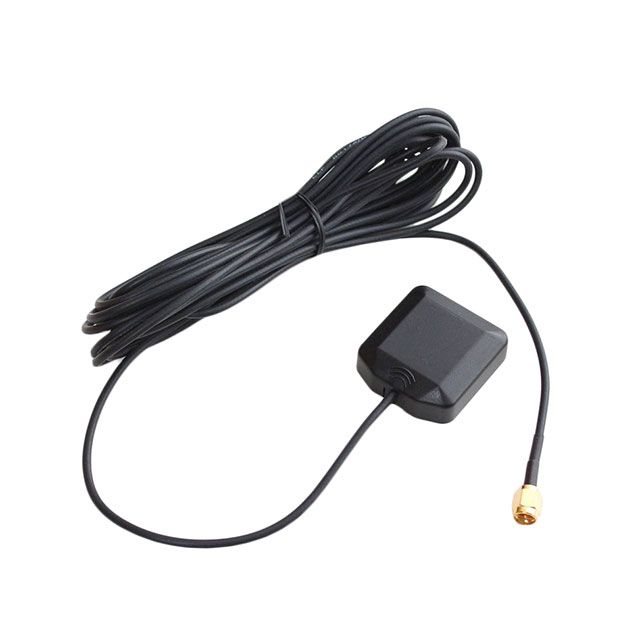

Utilizes a Module antenna style for improved signal capture. Perfectly designed for situations involving GPS. Equipped with features categorized as Cable - 5m, LNA, Filter. Offers a center frequency of 1.575GHz. Maintains a 1.575GHz center frequency for reliable signal performance. Categorized within the UHF (1GHz ~ 2GHz) frequency range to meet industry standards. Offers a 1.574GHz ~ 1.576GHz frequency spectrum for broad-spectrum applications. Delivers 28dB gain to enhance signal amplification effectiveness. Maintains a maximum height of 0.524" (13.30mm) to comply with design standards. Mounting configuration Magnetic for structural stability. Number of frequency bands 1 for frequency allocation. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Type or family of RF protocol Navigation for communication standards. Termination method SMA Male for electrical or mechanical connections. Wave ratio 2 for RF performance.
