Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | WE-MCA | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Radio Frequency Protocol | 802.15.4, Bluetooth, Cellular, Navigation | |
| Frequency Classification | Wide Band | |
| Band Center Frequency | 830MHz, 2.2GHz | |
| Operational Hz Spectrum | 700MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | |
| RF Antenna Design | Chip | |
| Frequency Band Quantity | 2 | |
| Voltage Standing Wave Ratio | 4 | |
| Reflection Loss dB | - | |
| Amplification Factor | 2.1dBi, 5.5dBi | |
| Maximum Power Handling | - | |
| Key Product Highlights | - | |
| Circuit End Method | - | |
| Dust Water Resistance Rating | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |
| Upper Height Limit | 0.236" (6.00mm) | |
| Intended Uses | Bluetooth, GNSS, GPS, GSM , Wi-Fi, WLAN, Zigbee™ |
Description

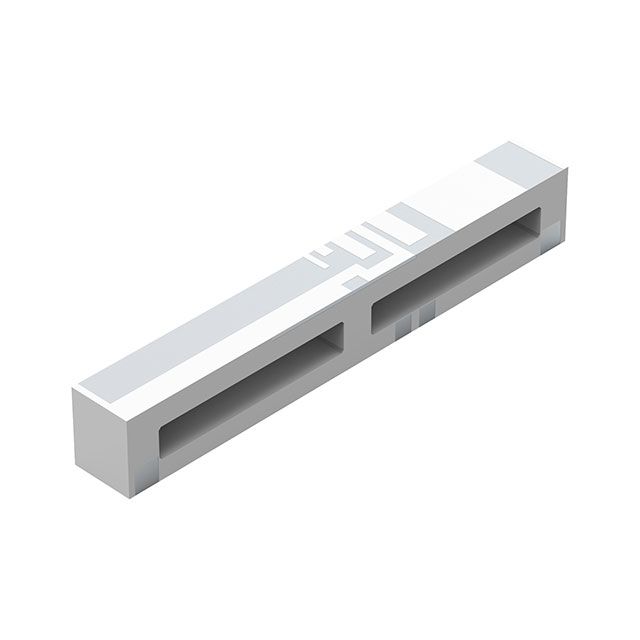

Utilizes a Chip antenna style for improved signal capture. Perfectly designed for situations involving Bluetooth, GNSS, GPS, GSM , Wi-Fi, WLAN, Zigbee™. Offers a center frequency of 830MHz, 2.2GHz. Maintains a 830MHz, 2.2GHz center frequency for reliable signal performance. Categorized within the Wide Band frequency range to meet industry standards. Offers a 700MHz ~ 960MHz, 1.71GHz ~ 2.69GHz frequency spectrum for broad-spectrum applications. Delivers 2.1dBi, 5.5dBi gain to enhance signal amplification effectiveness. Maintains a maximum height of 0.236" (6.00mm) to comply with design standards. Mounting configuration Surface Mount for structural stability. Number of frequency bands 2 for frequency allocation. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Type or family of RF protocol 802.15.4, Bluetooth, Cellular, Navigation for communication standards. Classification series for the product or component WE-MCA. Wave ratio 4 for RF performance.
