Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Radio Frequency Protocol | Bluetooth | |
| Communication Standard | Bluetooth v4.1 | |
| Signal Modulation Technique | - | |
| Oscillation Rate Hz | 2.4GHz | |
| Transfer Speed Mbps | 1Mbps | |
| Output Wattage Rating | 9.5dBm | |
| Response Sensitivity Level | -95dBm | |
| Serial Communication Ports | I2C, SPI, UART | |
| RF Antenna Design | Integrated, Chip | |
| Core Integrated Circuit | - | |
| Total Memory Bytes | 256kB Flash, 32kB SRAM | |
| Power Supply Voltage | 1.8V ~ 5.5V | |
| Receive Mode Amps | 21.5mA | |
| Transmit Mode Amps | 20mA | |
| Attachment Mounting Style | Surface Mount | |
| Ambient Temp Range | -40°C ~ 105°C | |

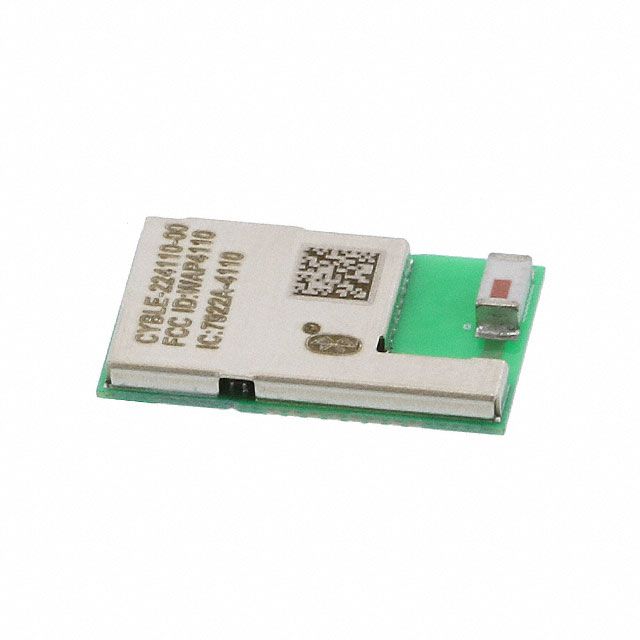

| Component Housing Style | Module |
Description
Utilizes a Integrated, Chip antenna style for improved signal capture. Operates with the receiving current set to 21.5mA. Features transmitting current rated at 20mA. Delivers a data transfer rate measured at 1Mbps for rapid operations. Demonstrates a sampling rate capability indicated as 1Mbps. Runs at a frequency of 2.4GHz. Total memory size 256kB Flash, 32kB SRAM for device storage capability. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Module that offers mechanical and thermal protection. The necessary output power 9.5dBm for peak device efficiency. Product status Obsolete concerning availability and lifecycle. Protocol for communication Bluetooth v4.1 for control or interaction. Type or family of RF protocol Bluetooth for communication standards. Rating for the sensitivity of sensor or input response -95dBm. Ports designated for serial communication interfaces I2C, SPI, UART. Voltage requirement 1.8V ~ 5.5V for electrical specifications. Voltage supply 1.8V ~ 5.5V for device operation.
