Stock:
Distributor: 122
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 250 | ₹ 961.20000 | ₹ 2,40,300.00 |
| 100 | ₹ 977.58000 | ₹ 97,758.00 |
| 50 | ₹ 993.86000 | ₹ 49,693.00 |
| 25 | ₹ 1,010.24000 | ₹ 25,256.00 |
| 10 | ₹ 1,026.53000 | ₹ 10,265.30 |
| 9 | ₹ 1,042.90000 | ₹ 9,386.10 |
Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 8000 | ₹ 972.65000 | ₹ 77,81,200.00 |
| 4000 | ₹ 988.65000 | ₹ 39,54,600.00 |
| 2000 | ₹ 1,006.55000 | ₹ 20,13,100.00 |
| 1000 | ₹ 1,033.55000 | ₹ 10,33,550.00 |
| 500 | ₹ 1,061.07000 | ₹ 5,30,535.00 |
Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 1,042.90000 | ₹ 1,042.90 |

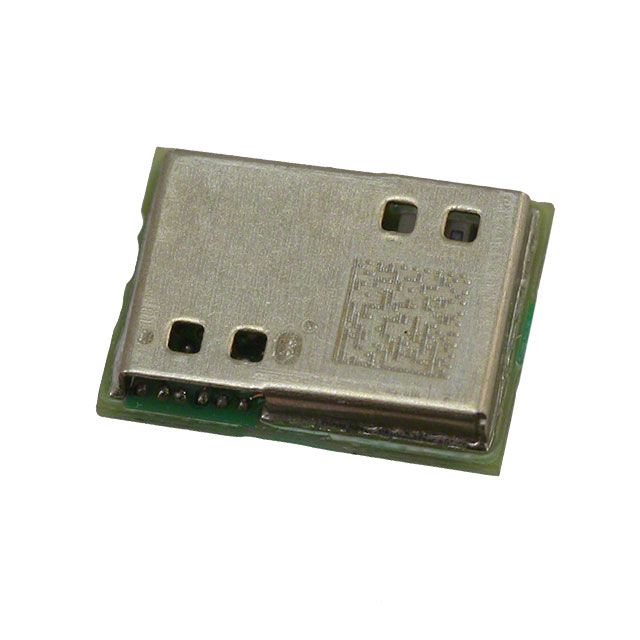

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | PAN1317 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Radio Frequency Protocol | Bluetooth | |
| Communication Standard | Bluetooth v4.0 | |
| Signal Modulation Technique | GFSK | |
| Oscillation Rate Hz | 2.4GHz | |
| Transfer Speed Mbps | 3Mbps | |
| Output Wattage Rating | 10dBm | |
| Response Sensitivity Level | -93dBm | |
| Serial Communication Ports | I2S, UART | |
| RF Antenna Design | Antenna Not Included | |
| Core Integrated Circuit | CC2567 | |
| Total Memory Bytes | - | |
| Power Supply Voltage | 1.7V ~ 4.8V | |
| Receive Mode Amps | 33mA | |
| Transmit Mode Amps | 33mA | |
| Attachment Mounting Style | Surface Mount | |
| Ambient Temp Range | -20°C ~ 70°C | |
| Component Housing Style | PCB Module |
Description
Utilizes a Antenna Not Included antenna style for improved signal capture. Operates with the receiving current set to 33mA. Features transmitting current rated at 33mA. Delivers a data transfer rate measured at 3Mbps for rapid operations. Demonstrates a sampling rate capability indicated as 3Mbps. Runs at a frequency of 2.4GHz. Communication modulation technique GFSK for data transmission. Mounting configuration Surface Mount for structural stability. Temperature range -20°C ~ 70°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case PCB Module that offers mechanical and thermal protection. The necessary output power 10dBm for peak device efficiency. Product status Obsolete concerning availability and lifecycle. Protocol for communication Bluetooth v4.0 for control or interaction. Type or family of RF protocol Bluetooth for communication standards. Rating for the sensitivity of sensor or input response -93dBm. Ports designated for serial communication interfaces I2S, UART. Classification series for the product or component PAN1317. Voltage requirement 1.7V ~ 4.8V for electrical specifications. IC or component CC2567 utilized in circuit design. Voltage supply 1.7V ~ 4.8V for device operation.
