Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

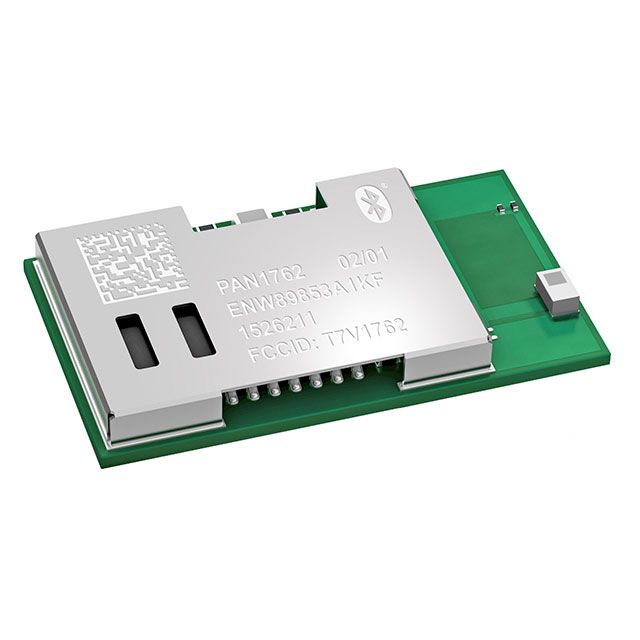

| Product Series Line | PAN1762 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Radio Frequency Protocol | Bluetooth | |
| Communication Standard | Bluetooth v5.0 | |
| Signal Modulation Technique | - | |
| Oscillation Rate Hz | 2.4GHz | |
| Transfer Speed Mbps | 2Mbps | |
| Output Wattage Rating | 8dBm | |
| Response Sensitivity Level | -94dBm | |
| Serial Communication Ports | I2C, SPI, UART | |
| RF Antenna Design | Integrated, Chip | |
| Core Integrated Circuit | TC35680 | |
| Total Memory Bytes | 128kB Flash, 144kB RAM | |
| Power Supply Voltage | 1.9V ~ 3.6V | |
| Receive Mode Amps | 5.1mA | |
| Transmit Mode Amps | 11mA | |
| Attachment Mounting Style | Surface Mount | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Component Housing Style | Module |
Description
Utilizes a Integrated, Chip antenna style for improved signal capture. Operates with the receiving current set to 5.1mA. Features transmitting current rated at 11mA. Delivers a data transfer rate measured at 2Mbps for rapid operations. Demonstrates a sampling rate capability indicated as 2Mbps. Runs at a frequency of 2.4GHz. Total memory size 128kB Flash, 144kB RAM for device storage capability. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Module that offers mechanical and thermal protection. The necessary output power 8dBm for peak device efficiency. Product status Obsolete concerning availability and lifecycle. Protocol for communication Bluetooth v5.0 for control or interaction. Type or family of RF protocol Bluetooth for communication standards. Rating for the sensitivity of sensor or input response -94dBm. Ports designated for serial communication interfaces I2C, SPI, UART. Classification series for the product or component PAN1762. Voltage requirement 1.9V ~ 3.6V for electrical specifications. IC or component TC35680 utilized in circuit design. Voltage supply 1.9V ~ 3.6V for device operation.
