Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Wireless RF Category | General Purpose | |
| Circuit Topology Design | Reflective | |
| Electrical Pathway | SPDT | |
| Operational Hz Spectrum | 100MHz ~ 3GHz | |
| Electrical Separation Rating | 27dB | |
| Signal Insertion Attenuation | 0.6dB | |
| Benchmark Hz Rate | 2GHz | |
| 1dB Compression Point | - | |
| Third-Order Intercept Point | - | |
| Key Product Highlights | DC Blocked, Single Line Control | |
| AC Resistance Value | 50Ohm | |
| Power Supply Voltage | 2.4V ~ 3.6V | |
| Ambient Temp Range | -30°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | - | |

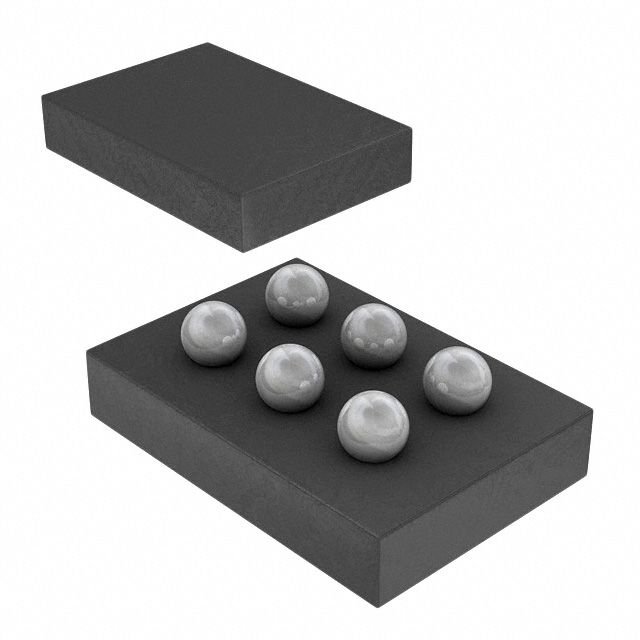

| Component Housing Style | 6-XFBGA, WLCSP | |
| Vendor Package Type | FWLP-6 |
Description
Configured for circuit type described as SPDT. Equipped with features categorized as DC Blocked, Single Line Control. Offers a 100MHz ~ 3GHz frequency spectrum for broad-spectrum applications. Configured with 50Ohm impedance to maintain signal quality. Offers 0.6dB insertion loss to minimize signal attenuation. Offers 27dB isolation to prevent electrical interference. Temperature range -30°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 6-XFBGA, WLCSP that offers mechanical and thermal protection. Type of package FWLP-6 that preserves the integrity of the device. The category of RF General Purpose for frequency and modulation specifications. Supplier package type FWLP-6 for component selection. Voltage requirement 2.4V ~ 3.6V for electrical specifications. Frequency rate 2GHz for assessing performance. Layout design Reflective for electrical systems or configurations. Voltage supply 2.4V ~ 3.6V for device operation.
