Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | WirelessUSB™ | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Device Type Classification | TxRx Only | |
| Radio Frequency Protocol | General ISM > 1GHz | |
| Communication Standard | - | |
| Signal Modulation Technique | DSSS, GFSK | |
| Oscillation Rate Hz | 2.4GHz | |
| Maximum Data Throughput | 62.5kbps | |
| Output Wattage Rating | 0dBm | |
| Response Sensitivity Level | -90dBm | |
| Total Memory Bytes | - | |
| Serial Communication Ports | SPI | |
| General Purpose I/O Pins | - | |
| Power Supply Voltage | 2.7V ~ 3.6V | |
| Receive Mode Amps | 57.7mA | |
| Transmit Mode Amps | 69.1mA | |
| Ambient Temp Range | 0°C ~ 70°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

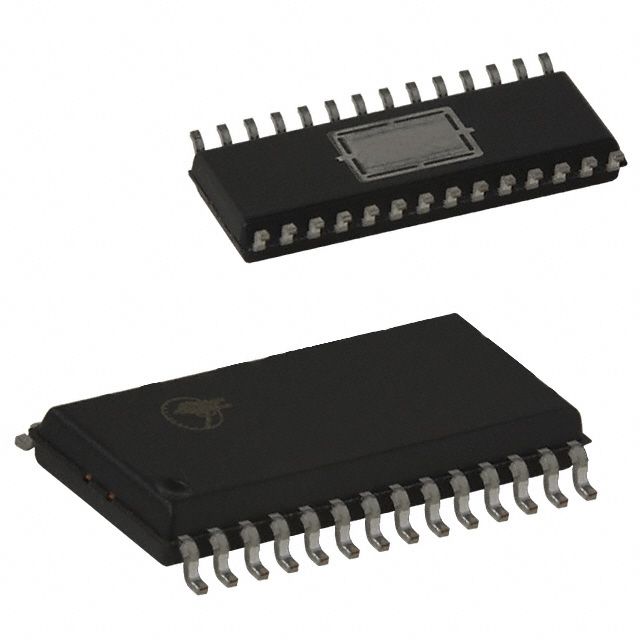

| Component Housing Style | 28-SOIC (0.295", 7.50mm Width) Exposed Pad | |
| Vendor Package Type | 28-SOIC |
Description
Operates with the receiving current set to 57.7mA. Features transmitting current rated at 69.1mA. Provides a maximum data rate potential of 62.5kbps. Runs at a frequency of 2.4GHz. Communication modulation technique DSSS, GFSK for data transmission. Mounting configuration Surface Mount for structural stability. Temperature range 0°C ~ 70°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 28-SOIC (0.295", 7.50mm Width) Exposed Pad that offers mechanical and thermal protection. Type of package 28-SOIC that preserves the integrity of the device. The necessary output power 0dBm for peak device efficiency. Product status Obsolete concerning availability and lifecycle. Type or family of RF protocol General ISM > 1GHz for communication standards. Rating for the sensitivity of sensor or input response -90dBm. Ports designated for serial communication interfaces SPI. Classification series for the product or component WirelessUSB™. Supplier package type 28-SOIC for component selection. Voltage requirement 2.7V ~ 3.6V for electrical specifications. Type classification TxRx Only for specifications. Voltage supply 2.7V ~ 3.6V for device operation.
