Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10000 | ₹ 747.60000 | ₹ 74,76,000.00 |
| 1000 | ₹ 794.33000 | ₹ 7,94,330.00 |
| 500 | ₹ 841.05000 | ₹ 4,20,525.00 |
| 100 | ₹ 887.77000 | ₹ 88,777.00 |
| 36 | ₹ 934.50000 | ₹ 33,642.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Not For New Designs | |
| Device Type Classification | TxRx + MCU | |
| Radio Frequency Protocol | 802.15.4 | |
| Communication Standard | Zigbee® | |
| Signal Modulation Technique | O-QPSK | |
| Oscillation Rate Hz | 2.4GHz | |
| Maximum Data Throughput | 250kbps | |
| Output Wattage Rating | 4dBm | |
| Response Sensitivity Level | -100dBm | |
| Total Memory Bytes | 128kB Flash, 80kB ROM, 96kB SRAM | |
| Serial Communication Ports | I2C, I2S, JTAG, SPI, UART | |
| General Purpose I/O Pins | 64 | |
| Power Supply Voltage | 2V ~ 3.6V | |
| Receive Mode Amps | 22mA ~ 24mA | |
| Transmit Mode Amps | 29mA | |
| Ambient Temp Range | -40°C ~ 105°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

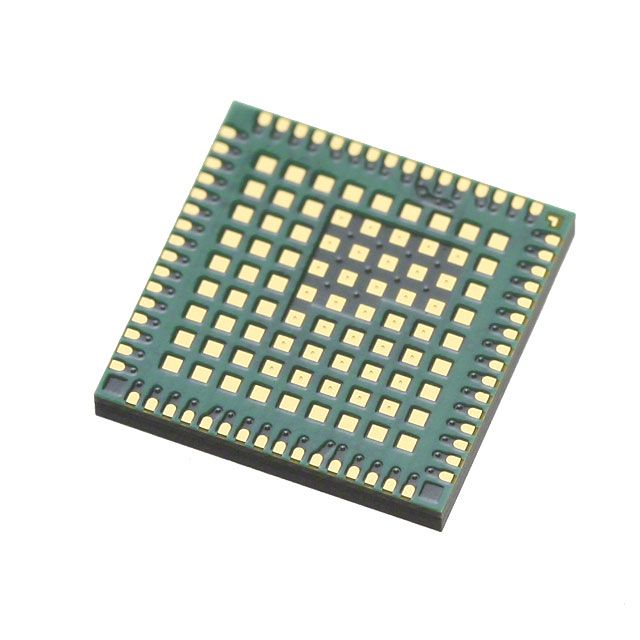

| Component Housing Style | 145-TFLGA | |
| Vendor Package Type | 145-TLGA (9.5x9.5) |
Description
Operates with the receiving current set to 22mA ~ 24mA. Features transmitting current rated at 29mA. Provides a maximum data rate potential of 250kbps. Runs at a frequency of 2.4GHz. Provides 64 GPIO pins for flexible input/output interfacing. Total memory size 128kB Flash, 80kB ROM, 96kB SRAM for device storage capability. Communication modulation technique O-QPSK for data transmission. Mounting configuration Surface Mount for structural stability. Overall I/O 64 for digital links. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 145-TFLGA that offers mechanical and thermal protection. Type of package 145-TLGA (9.5x9.5) that preserves the integrity of the device. The necessary output power 4dBm for peak device efficiency. Product status Not For New Designs concerning availability and lifecycle. Protocol for communication Zigbee® for control or interaction. Type or family of RF protocol 802.15.4 for communication standards. Rating for the sensitivity of sensor or input response -100dBm. Ports designated for serial communication interfaces I2C, I2S, JTAG, SPI, UART. Supplier package type 145-TLGA (9.5x9.5) for component selection. Voltage requirement 2V ~ 3.6V for electrical specifications. Type classification TxRx + MCU for specifications. Voltage supply 2V ~ 3.6V for device operation.
