Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | TrayTray | |
| Availability Status | Obsolete | |
| Device Type Classification | TxRx + MCU | |
| Radio Frequency Protocol | General ISM < 1GHz | |
| Communication Standard | EZRadioPro | |
| Signal Modulation Technique | FSK, GFSK, OOK | |
| Oscillation Rate Hz | 240MHz ~ 960MHz | |
| Maximum Data Throughput | 256kbps | |
| Output Wattage Rating | 20dBm (Max) | |
| Response Sensitivity Level | -121dBm | |
| Total Memory Bytes | 32kB Flash, 8.5kB RAM | |
| Serial Communication Ports | I2C, SPI, UART | |
| General Purpose I/O Pins | 53 | |
| Power Supply Voltage | 1.8V ~ 3.8V | |
| Receive Mode Amps | 18.5mA | |
| Transmit Mode Amps | 85mA | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

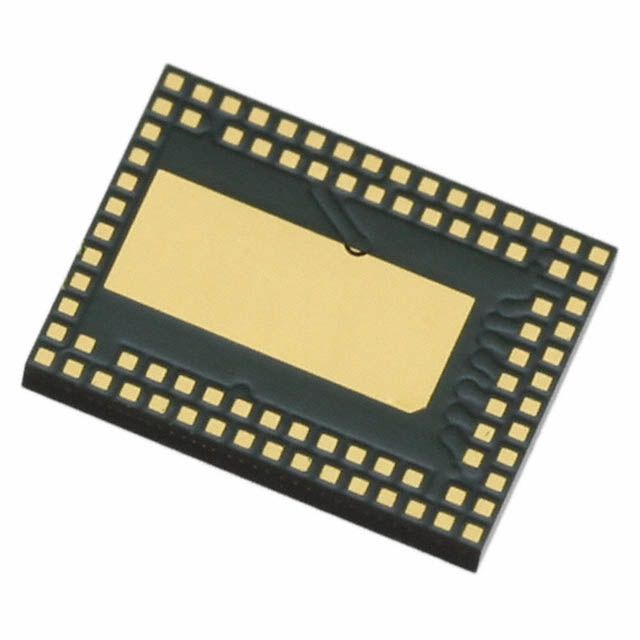

| Component Housing Style | 85-VFLGA Exposed Pad | |
| Vendor Package Type | 85-LGA (6x8) |
Description
Operates with the receiving current set to 18.5mA. Features transmitting current rated at 85mA. Provides a maximum data rate potential of 256kbps. Runs at a frequency of 240MHz ~ 960MHz. Provides 53 GPIO pins for flexible input/output interfacing. Total memory size 32kB Flash, 8.5kB RAM for device storage capability. Communication modulation technique FSK, GFSK, OOK for data transmission. Mounting configuration Surface Mount for structural stability. Overall I/O 53 for digital links. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing TrayTray for safeguarding or transporting components. Style of the enclosure/case 85-VFLGA Exposed Pad that offers mechanical and thermal protection. Type of package 85-LGA (6x8) that preserves the integrity of the device. The necessary output power 20dBm (Max) for peak device efficiency. Product status Obsolete concerning availability and lifecycle. Protocol for communication EZRadioPro for control or interaction. Type or family of RF protocol General ISM < 1GHz for communication standards. Rating for the sensitivity of sensor or input response -121dBm. Ports designated for serial communication interfaces I2C, SPI, UART. Supplier package type 85-LGA (6x8) for component selection. Voltage requirement 1.8V ~ 3.8V for electrical specifications. Type classification TxRx + MCU for specifications. Voltage supply 1.8V ~ 3.8V for device operation.
