Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 389 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Interface Connector Category | Stacking Compression | |
| Switch Position Options | 100 | |
| Component Spacing Distance | 0.050" (1.27mm) | |
| Grid Row Count | 4 | |
| Attachment Mounting Style | Surface Pressure with Screw Lock | |
| Key Product Highlights | - | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 30.0µin (0.76µm) | |
| Compatible Stack Heights | - | |
| PCB Clearance Height | 0.343" (8.70mm) |
Description

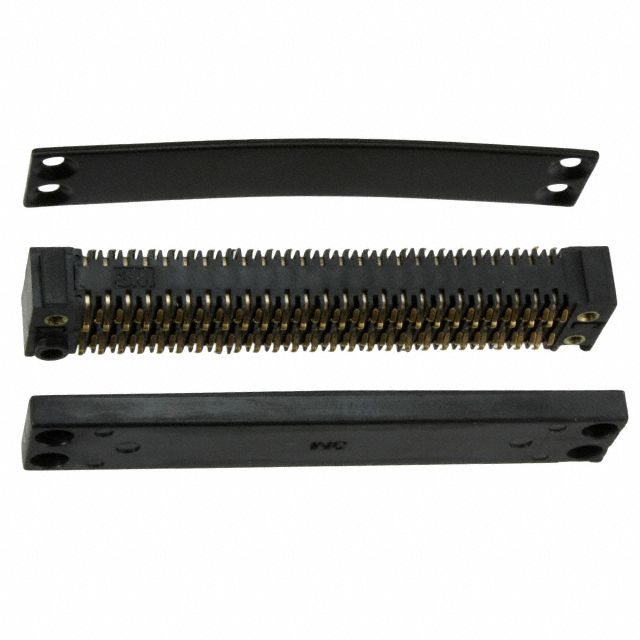

Features a connector type acknowledged as Stacking Compression. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 30.0µin (0.76µm). Maintains a height of 0.343" (8.70mm) above the board to accommodate assembly and clearance requirements. Mounting configuration Surface Pressure with Screw Lock for structural stability. Overall number of positions 100 for switches or mechanical components. Overall rows 4 for setting up matrices or displays. Type of housing Bulk for safeguarding or transporting components. Distance 0.050" (1.27mm) for arranging components or aligning connectors. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component 389.
