Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Scotchlok™ | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| End Terminal Category | Male, Pin (Plug) | |
| Barrel Cylinder Width | 0.156" (3.96mm) | |
| AWG Wire Size | 18-22 AWG | |
| Full Overall Length | 0.850" (21.59mm) | |
| Cylinder Barrel Length | 0.190" (4.83mm) | |
| Protective Insulation Layer | Non-Mating End Insulated | |
| Circuit End Method | Crimp | |
| Key Product Highlights | - | |
| Pin Alloy Composition | - | |
| Pin Surface Treatment | - | |
| Visual Hue | Red |
Description

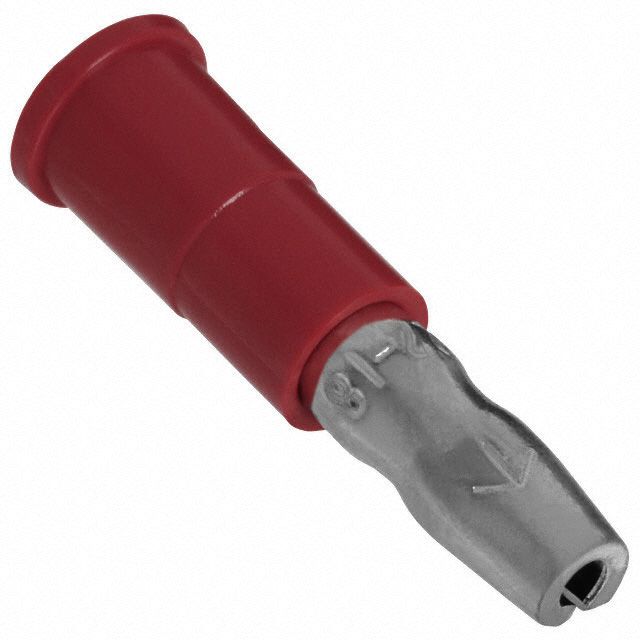

Offered in a shade referred to as Red to enhance the system's aesthetics. Lists barrel diameter noted at 0.156" (3.96mm). Insulation with a rating of Non-Mating End Insulated for safety and efficiency. The length of the barrel 0.190" (4.83mm) intended for connectors or tools. The complete length 0.850" (21.59mm) for thorough dimensional reference. Type of housing Bulk for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component Scotchlok™. Classification of terminal Male, Pin (Plug) for electrical or mechanical connections. Termination method Crimp for electrical or mechanical connections. Size of wire gauge 18-22 AWG according to electrical standards.
