Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Plug Design Type | D-Sub, High Density | |
| Interface Connector Category | Plug, Male Pins | |
| Switch Position Options | 26 | |
| Grid Row Count | 3 | |
| Attachment Mounting Style | Through Hole, Right Angle | |
| Connector Shell Configuration | 2 (DA, A) High Density | |
| Pin Interface Category | Signal | |
| Flange Design Element | Housing/Shell (4-40) | |
| Circuit End Method | Solder | |
| Main Construction Material | - | |
| Housing Material and Surface | Steel, Yellow Chromate Plated | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | - | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Ampere Capacity Rating | 3A | |
| Rear Connector Gap | - | |
| Key Product Highlights | Board Lock, Grounding Indents |
Description

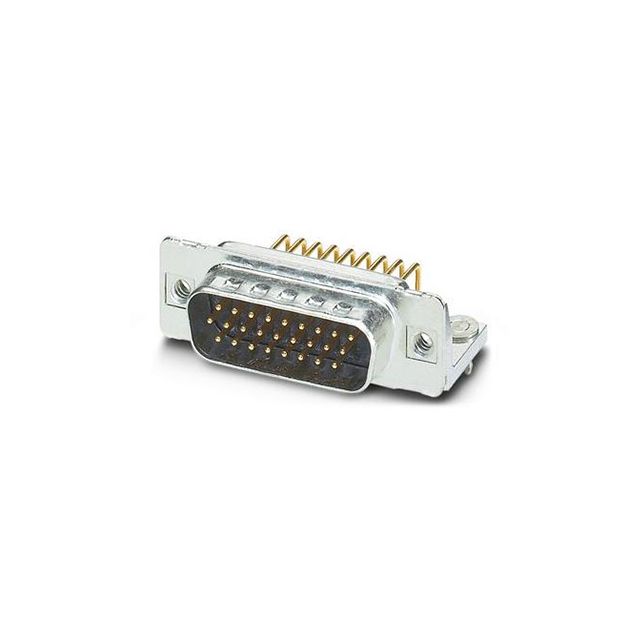

Utilizes a connector style known as D-Sub, High Density. Features a connector type acknowledged as Plug, Male Pins. Includes contact finish plated at Gold to improve conductivity. Makes use of a contact type known as Signal. Sets the ampere rating to 3A. Equipped with features categorized as Board Lock, Grounding Indents. Offers flange specifications defined as Housing/Shell (4-40). Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Through Hole, Right Angle for structural stability. Overall number of positions 26 for switches or mechanical components. Overall rows 3 for setting up matrices or displays. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Material and finish of the shell Steel, Yellow Chromate Plated for strength. Shell dimensions for connector setup 2 (DA, A) High Density for proper fitting. Termination method Solder for electrical or mechanical connections.
