Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 280 | ₹ 2,213.78000 | ₹ 6,19,858.40 |
| 120 | ₹ 2,349.97000 | ₹ 2,81,996.40 |
| 80 | ₹ 2,418.10000 | ₹ 1,93,448.00 |
| 40 | ₹ 2,539.19000 | ₹ 1,01,567.60 |
| 10 | ₹ 2,800.10000 | ₹ 28,001.00 |
| 1 | ₹ 3,294.63000 | ₹ 3,294.63 |
Stock:
Distributor: 114
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 240 | ₹ 2,347.82000 | ₹ 5,63,476.80 |

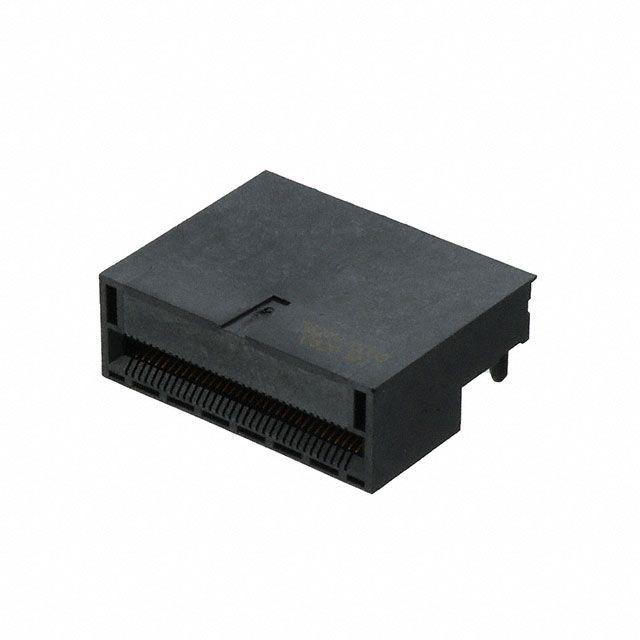

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | EdgeLine 76291 | |
| IC Encapsulation Type | TrayTray | |
| Availability Status | Active | |
| Expansion Card Category | Non Specified - Dual Edge | |
| Connector Polarity Type | Female | |
| Bay Row Position Total | 34 | |
| Switch Position Options | 68 | |
| Card Board Depth | 0.057" ~ 0.069" (1.44mm ~ 1.76mm) | |
| Grid Row Count | 2 | |
| Component Spacing Distance | 0.030" (0.76mm) | |
| Data Readout Method | Dual | |
| Key Product Highlights | Board Guide | |
| Attachment Mounting Style | Through Hole, Right Angle | |
| Circuit End Method | Press-Fit | |
| Pin Alloy Composition | Copper Alloy | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 29.5µin (0.75µm) | |
| Pin Interface Category | - | |
| Visual Hue | Black | |
| Flange Design Element | - | |
| Ambient Temp Range | -40°C ~ 105°C |
Description
Appropriate for card thickness of 0.057" ~ 0.069" (1.44mm ~ 1.76mm). Works with card types identified as Non Specified - Dual Edge. Offered in a shade referred to as Black to enhance the system's aesthetics. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 29.5µin (0.75µm). Constructed from the contact material known as Copper Alloy. Equipped with features categorized as Board Guide. Defined with Female gender configuration for connector compatibility. Mounting configuration Through Hole, Right Angle for structural stability. Overall number of positions 68 for switches or mechanical components. Positions per bay/row 34 for organized mounting. Overall rows 2 for setting up matrices or displays. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing TrayTray for safeguarding or transporting components. Distance 0.030" (0.76mm) for arranging components or aligning connectors. Product status Active concerning availability and lifecycle. Retrieve Dual for analysis or display. Classification series for the product or component EdgeLine 76291. Termination method Press-Fit for electrical or mechanical connections.
