Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5000 | ₹ 125.25000 | ₹ 6,26,250.00 |
| 1000 | ₹ 140.30000 | ₹ 1,40,300.00 |
| 500 | ₹ 147.33000 | ₹ 73,665.00 |
| 100 | ₹ 165.06000 | ₹ 16,506.00 |
| 10 | ₹ 194.20000 | ₹ 1,942.00 |
| 1 | ₹ 228.63000 | ₹ 228.63 |
Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 800 | ₹ 125.90000 | ₹ 1,00,720.00 |
| 600 | ₹ 131.26000 | ₹ 78,756.00 |
| 400 | ₹ 135.97000 | ₹ 54,388.00 |
| 200 | ₹ 139.76000 | ₹ 27,952.00 |
| 100 | ₹ 143.08000 | ₹ 14,308.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 76 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Interface Connector Category | Header | |
| Pin Interface Category | Male Pin | |
| Mating Connector Pitch | 0.100" (2.54mm) | |
| Switch Position Options | 10 | |
| Grid Row Count | 2 | |
| Mating Row Interval | 0.100" (2.54mm) | |
| Populated Position Count | All | |
| Design Style Variant | - | |
| Connector Shroud Coverage | - | |
| Attachment Mounting Style | - | |
| Circuit End Method | Solder | |
| Secure Attachment Method | - | |
| Engagement Pin Length | - | |
| Tail Pin Extension | 0.110" (2.80mm) | |
| Full Pin Contact Span | - | |
| Barrier Wall Height | - | |
| Pin Profile Design | - | |
| Engaging Pin Coating | Gold | |
| Engagement Layer Thickness | 8.00µin (0.203µm) | |
| Post-Contact Pin Layer | Gold | |
| Pin Alloy Composition | - | |
| Dielectric Insulation Type | - | |
| Key Product Highlights | - | |
| Ambient Temp Range | - | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | - | |
| Covering Wire Hue | Gray | |
| Ampere Capacity Rating | - | |
| Max Voltage Specification | - |
Description

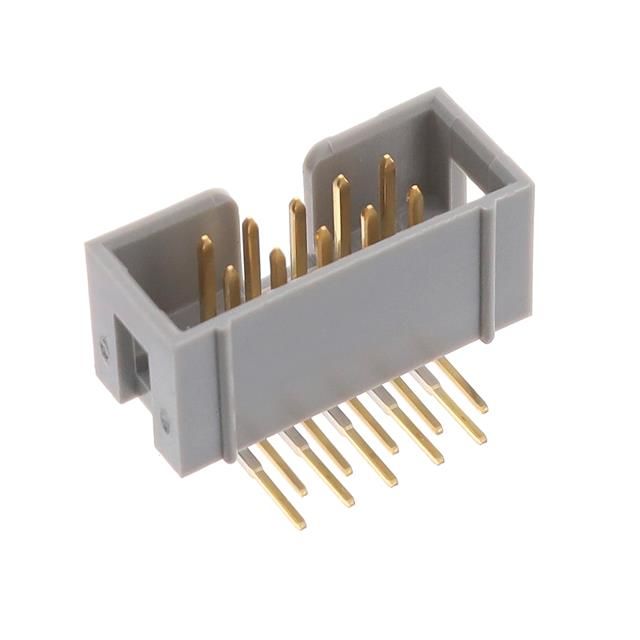

Specifies connector spacing defined as 0.100" (2.54mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Gold. Provides a post-contact finish defined by Gold. Emphasizes the thickness of the mating finish denoted as 8.00µin (0.203µm). Incorporates the length of the post contact specified as 0.110" (2.80mm). Makes use of a contact type known as Male Pin. Available in Gray color of insulation for easy identification. Overall number of positions 10 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 2 for setting up matrices or displays. Type of housing Bulk for safeguarding or transporting components. The distance 0.100" (2.54mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. The 0.100" (2.54mm) spacing between rows for proper connector alignment to ensure a precise fit. Classification series for the product or component 76. Termination method Solder for electrical or mechanical connections.
