Description

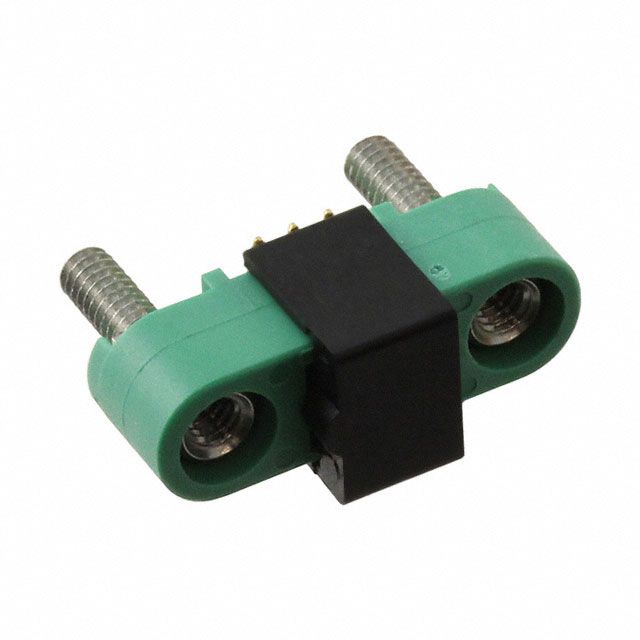

Specifies connector spacing defined as 0.049" (1.25mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Gold. Emphasizes the thickness of the mating finish denoted as 8.00µin (0.203µm). Incorporates the length of the post contact specified as 0.118" (3.00mm). Constructed from the contact material known as Phosphor Bronze. Crafted with a contact shape described as Circular. Makes use of a contact type known as Male Pin. Sets the ampere rating to 2A. Utilizes a fastening type recognized as Threaded. Equipped with features categorized as Mating Flange, Mounting Flange, Pick and Place. Available in Green color of insulation for easy identification. An insulation height of 0.193" (4.90mm) provides sufficient electrical clearance. Constructed with Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Through Hole for structural stability. Overall number of positions 6 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 2 for setting up matrices or displays. Temperature range -65°C ~ 150°C for environmental conditions impacting thermal efficiency. Type of housing Strip for safeguarding or transporting components. The distance 0.049" (1.25mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. The 0.049" (1.25mm) spacing between rows for proper connector alignment to ensure a precise fit. Classification series for the product or component Gecko SL. Extent of insulation Shrouded - 4 Wall for protective measures. Style variant Board to Board or Cable for design or arrangement. Termination method Solder for electrical or mechanical connections.
