Description

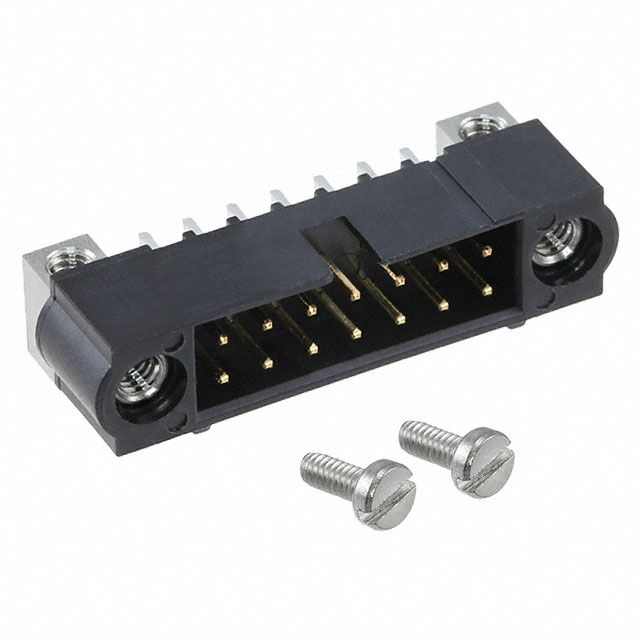

Specifies connector spacing defined as 0.079" (2.00mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Gold. Provides a post-contact finish defined by Tin. Emphasizes the thickness of the mating finish denoted as 29.5µin (0.75µm). Constructed from the contact material known as Copper Alloy. Crafted with a contact shape described as Circular. Makes use of a contact type known as Male Pin. Sets the ampere rating to 2.2A. Utilizes a fastening type recognized as Threaded. Equipped with features categorized as Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware. Available in Black color of insulation for easy identification. An insulation height of 0.218" (5.55mm) provides sufficient electrical clearance. Constructed with Polyphenylene Sulfide (PPS), Glass Filled insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Surface Mount, Right Angle for structural stability. Overall number of positions 14 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 2 for setting up matrices or displays. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. The distance 0.079" (2.00mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. The 0.079" (2.00mm) spacing between rows for proper connector alignment to ensure a precise fit. Classification series for the product or component Datamate J-Tek. Extent of insulation Shrouded - 4 Wall for protective measures. Style variant Board to Board or Cable for design or arrangement. Termination method Solder for electrical or mechanical connections. Voltage specification 800V for electronic devices.
