Description

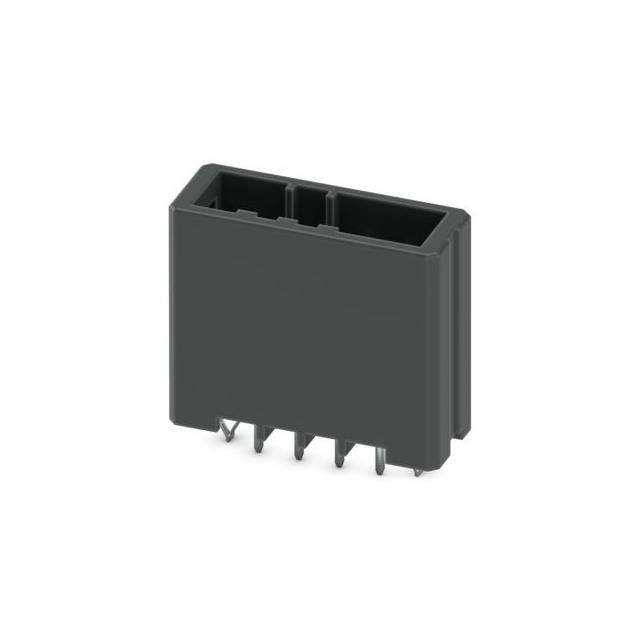

Specifies connector spacing defined as 0.150" (3.81mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Tin. Provides a post-contact finish defined by Tin. Emphasizes the thickness of the mating finish denoted as 118.1µin (3.00µm). Incorporates the length of the post contact specified as 0.150" (3.81mm). Constructed from the contact material known as Copper Alloy. Crafted with a contact shape described as Rectangular. Makes use of a contact type known as Tab. Sets the ampere rating to 8A. Utilizes a fastening type recognized as Push-Pull. Equipped with features categorized as Board Lock. Available in Black color of insulation for easy identification. An insulation height of 0.850" (21.59mm) provides sufficient electrical clearance. Constructed with Polybutylene Terephthalate (PBT) insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Through Hole for structural stability. Overall number of positions 4 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 1 for setting up matrices or displays. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. The distance 0.150" (3.81mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. Classification series for the product or component CONNEXIS. Extent of insulation Shrouded - 4 Wall for protective measures. Style variant Board to Cable/Wire for design or arrangement. Termination method Solder for electrical or mechanical connections. Voltage specification 160V for electronic devices.
