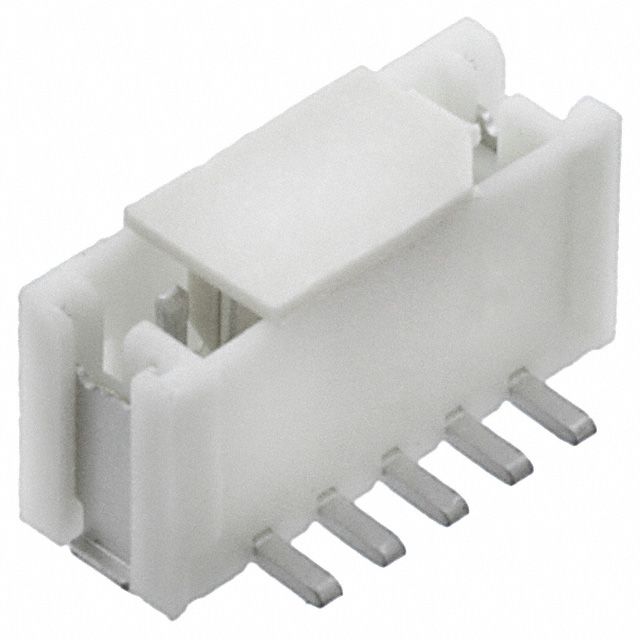

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | WR-WTB | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Interface Connector Category | Header | |
| Pin Interface Category | Male Pin | |
| Mating Connector Pitch | 0.059" (1.50mm) | |
| Switch Position Options | 5 | |
| Grid Row Count | 1 | |
| Mating Row Interval | - | |
| Populated Position Count | All | |
| Design Style Variant | Board to Cable/Wire | |
| Connector Shroud Coverage | Shrouded - 4 Wall | |
| Attachment Mounting Style | Surface Mount | |
| Circuit End Method | Solder | |
| Secure Attachment Method | Detent Lock | |
| Engagement Pin Length | - | |
| Tail Pin Extension | - | |
| Full Pin Contact Span | - | |
| Barrier Wall Height | 0.197" (5.00mm) | |
| Pin Profile Design | Square | |
| Engaging Pin Coating | Tin | |
| Engagement Layer Thickness | - | |
| Post-Contact Pin Layer | Tin | |
| Pin Alloy Composition | Copper Alloy | |
| Dielectric Insulation Type | Polyamide (PA6T), Nylon 6T | |
| Key Product Highlights | Pick and Place, Solder Retention | |
| Ambient Temp Range | -25°C ~ 85°C | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Covering Wire Hue | Ivory | |
| Ampere Capacity Rating | 1A | |
| Max Voltage Specification | 50V |
Description
Specifies connector spacing defined as 0.059" (1.50mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Tin. Provides a post-contact finish defined by Tin. Constructed from the contact material known as Copper Alloy. Crafted with a contact shape described as Square. Makes use of a contact type known as Male Pin. Sets the ampere rating to 1A. Utilizes a fastening type recognized as Detent Lock. Equipped with features categorized as Pick and Place, Solder Retention. Available in Ivory color of insulation for easy identification. An insulation height of 0.197" (5.00mm) provides sufficient electrical clearance. Constructed with Polyamide (PA6T), Nylon 6T insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Surface Mount for structural stability. Overall number of positions 5 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 1 for setting up matrices or displays. Temperature range -25°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. The distance 0.059" (1.50mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. Classification series for the product or component WR-WTB. Extent of insulation Shrouded - 4 Wall for protective measures. Style variant Board to Cable/Wire for design or arrangement. Termination method Solder for electrical or mechanical connections. Voltage specification 50V for electronic devices.
