Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3000 | ₹ 21.49000 | ₹ 64,470.00 |
| 1000 | ₹ 23.22000 | ₹ 23,220.00 |
| 500 | ₹ 24.39000 | ₹ 12,195.00 |
| 250 | ₹ 25.61000 | ₹ 6,402.50 |
| 100 | ₹ 27.33000 | ₹ 2,733.00 |
| 50 | ₹ 28.70000 | ₹ 1,435.00 |
| 25 | ₹ 30.14000 | ₹ 753.50 |
| 10 | ₹ 32.22000 | ₹ 322.20 |
| 1 | ₹ 37.50000 | ₹ 37.50 |
Stock:
Distributor: 157
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 26.17000 | ₹ 26,170.00 |
Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10 | ₹ 28.59000 | ₹ 285.90 |
Stock:
Distributor: 130
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10 | ₹ 29.79000 | ₹ 297.90 |
| 50 | ₹ 28.26000 | ₹ 1,413.00 |
| 200 | ₹ 26.59000 | ₹ 5,318.00 |
| 350 | ₹ 25.13000 | ₹ 8,795.50 |
| 750 | ₹ 23.78000 | ₹ 17,835.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 40.05000 | ₹ 40.05 |
| 10 | ₹ 29.28000 | ₹ 292.80 |
| 100 | ₹ 23.32000 | ₹ 2,332.00 |
| 500 | ₹ 21.00000 | ₹ 10,500.00 |
| 1000 | ₹ 20.56000 | ₹ 20,560.00 |
| 2000 | ₹ 20.03000 | ₹ 40,060.00 |
| 10000 | ₹ 18.24000 | ₹ 1,82,400.00 |
| 25000 | ₹ 17.53000 | ₹ 4,38,250.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Lead Tail Configuration | No Tail | |
| Circuit End Method | Solder | |
| Full Overall Length | 0.142" (3.61mm) | |
| Compatible Pin Size | 0.018" ~ 0.020" (0.46mm ~ 0.51mm) | |
| Square Pin Fit Dimensions | - | |
| Socket Hole Size | 0.043" (1.09mm) | |
| Fixing Hole Size | 0.039" ~ 0.043" (0.99mm ~ 1.09mm) | |
| Mount Flange Width | 0.057" (1.45mm) | |
| Solder Tail Wire Size | - | |
| Receptacle Insertion Depth | 0.124" (3.15mm) | |
| Pin Alloy Composition | Beryllium Copper | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 3.94µin (0.10µm) | |
| Quality Grade Level | - | |
| Certification Qualification | - |

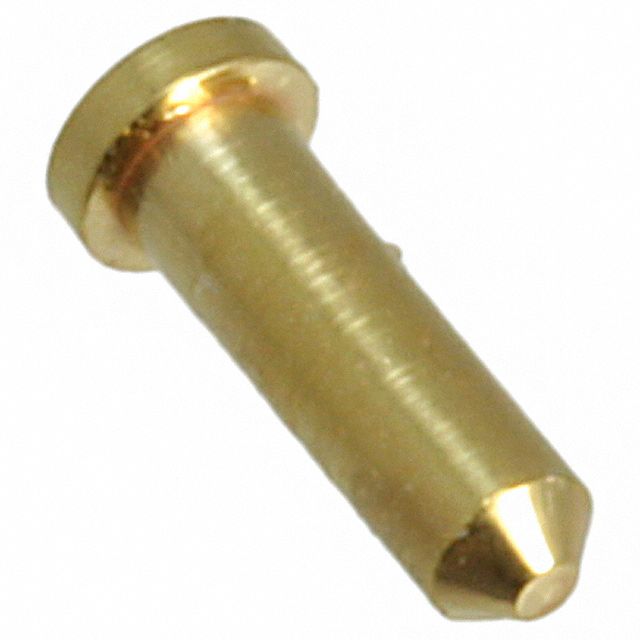

Description
Designed to fit pin sizes of 0.018" ~ 0.020" (0.46mm ~ 0.51mm) for optimal mechanical integration. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 3.94µin (0.10µm). Constructed from the contact material known as Beryllium Copper. Features a flange width noted at 0.057" (1.45mm). The complete length 0.142" (3.61mm) for thorough dimensional reference. Dimensions of the mounting hole 0.039" ~ 0.043" (0.99mm ~ 1.09mm) for appropriate fastener fit. Type of housing Bulk for safeguarding or transporting components. Diameter of hole for pin 0.043" (1.09mm) to ensure proper installation or alignment. Product status Active concerning availability and lifecycle. Depth of socket 0.124" (3.15mm) for connector placement. The structure of the tail No Tail for connectors or components. Termination method Solder for electrical or mechanical connections.
