Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 723.13000 | ₹ 7,23,130.00 |
| 500 | ₹ 748.83000 | ₹ 3,74,415.00 |
| 250 | ₹ 781.87000 | ₹ 1,95,467.50 |
| 100 | ₹ 839.92000 | ₹ 83,992.00 |
| 50 | ₹ 897.36000 | ₹ 44,868.00 |
| 25 | ₹ 968.88000 | ₹ 24,222.00 |
| 10 | ₹ 1,088.43000 | ₹ 10,884.30 |
| 1 | ₹ 1,527.44000 | ₹ 1,527.44 |

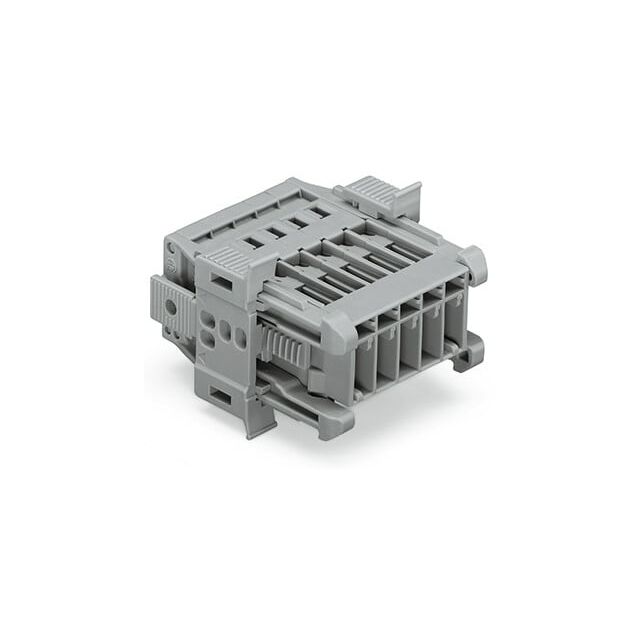

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | X-COM® | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Device Type Classification | Plug, Male Pins | |
| Switch Position Options | 4 | |
| Tier Position Quantity | 4 | |
| Voltage Level Tiers | 1 | |
| Component Spacing Distance | 0.197" (5.00mm) | |
| Pin Header Alignment | - | |
| Wire Insertion Angle | 180° | |
| Lead Termination Type | Screwless - Spring Cage, Tension Clamp | |
| Attachment Mounting Style | Panel Mount, Snap-In | |
| IEC Standard Current | 32A | |
| IEC Standard Voltage | 500 V | |
| UL Certified Current | - | |
| UL Approved Voltage | - | |
| AWG Wire Range | 12-28 AWG | |
| Metric Wire Cross-Section Range | 0.08-4mm² | |
| Visual Hue | Gray | |
| Ambient Temp Range | - | |
| Pin Engagement Polish | - | |
| Key Product Highlights | Mating Flange |
Description
Offered in a shade referred to as Gray to enhance the system's aesthetics. Operates with the current defined by IEC standards set at 32A. Equipped with features categorized as Mating Flange. Mounting configuration Panel Mount, Snap-In for structural stability. Overall levels 1 for multi-tier systems. Overall number of positions 4 for switches or mechanical components. Type of housing Box for safeguarding or transporting components. Distance 0.197" (5.00mm) for arranging components or aligning connectors. The orientation of the wire 180° for correct installation. Positions available at each tier 4 for mechanical or electrical configurations. Product status Active concerning availability and lifecycle. Classification series for the product or component X-COM®. Type of termination Screwless - Spring Cage, Tension Clamp for connector or device. Type classification Plug, Male Pins for specifications. IEC standard voltage 500 V for compliance. Wire gauge or AWG range 12-28 AWG for electrical applications. Wire gauge or range in mm² 0.08-4mm² for electrical applications.
