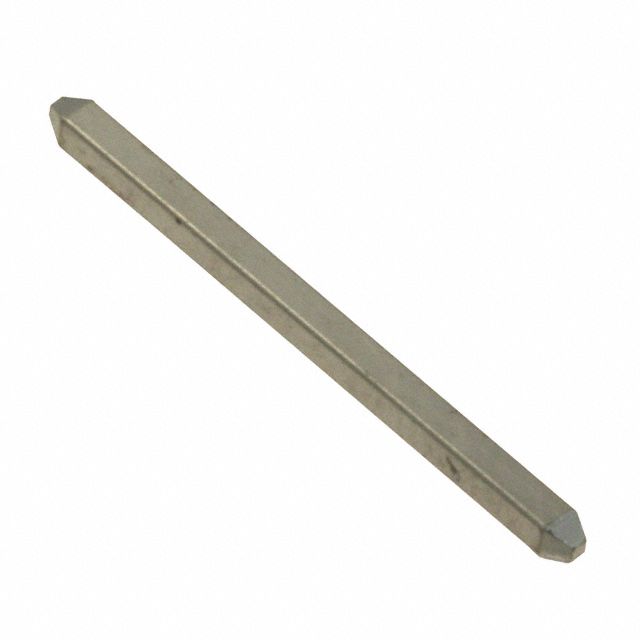

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | KK 2161 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| End Terminal Category | Single Post | |
| Connection Terminal Design | Smooth | |
| Flange-Above Pin Gauge | 0.045" (1.14mm) Square | |
| Flange-Below Pin Gauge | 0.045" (1.14mm) Square | |
| Flange-Above Extension | - | |
| Flange-Below Extension | - | |
| Full Overall Length | 0.530" (13.46mm) | |
| Mount Flange Width | - | |
| Fixing Hole Size | 0.050" ~ 0.053" (1.27mm ~ 1.35mm) | |
| Attachment Mounting Style | Through Hole | |
| Circuit End Method | Press-Fit | |
| Protective Insulation Layer | Non-Insulated | |
| Circuit Board Depth | 0.062" (1.57mm) | |
| Pin Alloy Composition | Brass | |
| Pin Surface Treatment | Tin | |
| Pin Coating Depth | 200.0µin (5.08µm) |
Description
Features a thickness of 0.062" (1.57mm) to ensure strong structural integrity. Includes contact finish plated at Tin to improve conductivity. Represents the thickness of the contact finish recorded at 200.0µin (5.08µm). Constructed from the contact material known as Brass. Facilitates a maximum output current level set as 0.045" (1.14mm) Square. Insulation with a rating of Non-Insulated for safety and efficiency. The complete length 0.530" (13.46mm) for thorough dimensional reference. Dimensions of the mounting hole 0.050" ~ 0.053" (1.27mm ~ 1.35mm) for appropriate fastener fit. Mounting configuration Through Hole for structural stability. Type of housing Bulk for safeguarding or transporting components. Measurement of pin above flange 0.045" (1.14mm) Square for connector requirements. Measurement of pin below flange 0.045" (1.14mm) Square for connector requirements. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component KK 2161. Design of terminal Smooth for connectors or cabling. Classification of terminal Single Post for electrical or mechanical connections. Termination method Press-Fit for electrical or mechanical connections.
