Stock:
Distributor: 118
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 38 | ₹ 38.18000 | ₹ 1,450.84 |
| 9 | ₹ 47.73000 | ₹ 429.57 |
| 1 | ₹ 57.27000 | ₹ 57.27 |

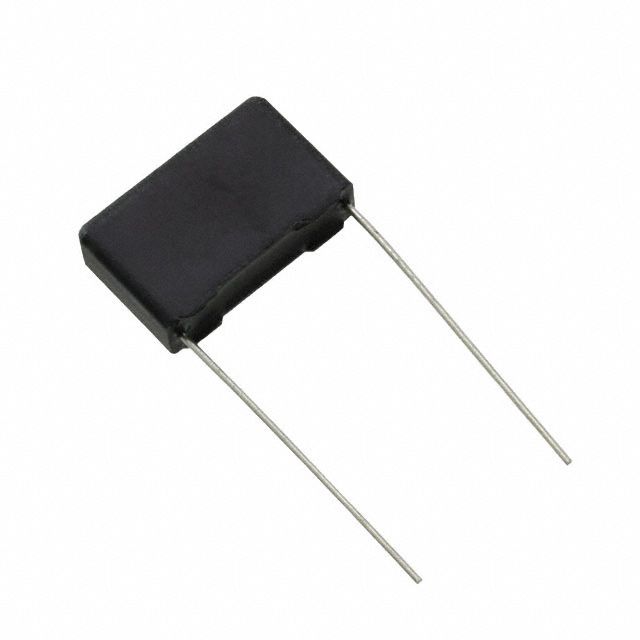

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | F1772S | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Storage Capacity Electrical | 10000 pF | |
| Accuracy Tolerance Percentage | ±10% | |
| AC Voltage Max | 310V | |
| DC Voltage Max | 630V | |
| Insulating Dielectric Type | Polyester | |
| Series Resistance Equivalent | - | |
| Ambient Temp Range | -55°C ~ 105°C | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | Radial | |
| Package Size Specs | 0.689" L x 0.197" W (17.50mm x 5.00mm) | |
| Maximum Mounted Height | 0.433" (11.00mm) | |
| Circuit End Method | PC Pins | |
| Pin Lead Gap | 0.591" (15.00mm) | |
| Intended Uses | EMI, RFI Suppression | |
| Performance Rating Specs | X2 | |
| Key Product Highlights | - |
Description
Perfectly designed for situations involving EMI, RFI Suppression. Provides a capacitance level rated at 10000 pF to maintain circuit stability. Constructed with dielectric material specified as Polyester. Maximum installed height of 0.433" (11.00mm) for components affixed to the board. Lead spacing 0.591" (15.00mm) to meet PCB design requirements. Mounting configuration Through Hole for structural stability. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case Radial that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. Criteria X2 for electrical, mechanical, or environmental performance. Classification series for the product or component F1772S. Details on package size 0.689" L x 0.197" W (17.50mm x 5.00mm) for electrical or mechanical components. Measurement dimensions 0.689" L x 0.197" W (17.50mm x 5.00mm) for component specifications. Termination method PC Pins for electrical or mechanical connections. Precision tolerance level ±10% in manufacturing processes. The highest AC voltage specification 310V for the device. The highest DC voltage specification 630V for components.
