Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 8000 | ₹ 350.30000 | ₹ 28,02,400.00 |
| 6000 | ₹ 352.13000 | ₹ 21,12,780.00 |
| 4000 | ₹ 353.95000 | ₹ 14,15,800.00 |
| 2000 | ₹ 355.78000 | ₹ 7,11,560.00 |
| 1000 | ₹ 384.64000 | ₹ 3,84,640.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 94SVPD | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Obsolete | |
| Device Type Classification | Polymer | |
| Storage Capacity Electrical | 10 µF | |
| Accuracy Tolerance Percentage | ±20% | |
| Rated Operating Voltage | 25 V | |
| Series Resistance Equivalent | 65mOhm | |
| Expected Life at Temperature | 2000 Hrs @ 125°C | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Performance Rating Specs | - | |
| Intended Uses | General Purpose | |
| Key Product Highlights | - | |
| Low-Freq Ripple Amps | 23.7 mA @ 120 Hz | |
| High-Freq Ripple Amps | 474 mA @ 100 kHz | |
| AC Resistance Value | - | |
| Pin Lead Gap | - | |
| Package Size Specs | 0.248" Dia (6.30mm) | |
| Maximum Mounted Height | 0.236" (6.00mm) | |
| SMD Pad Footprint | 0.260" L x 0.260" W (6.60mm x 6.60mm) | |
| Attachment Mounting Style | Surface Mount | |

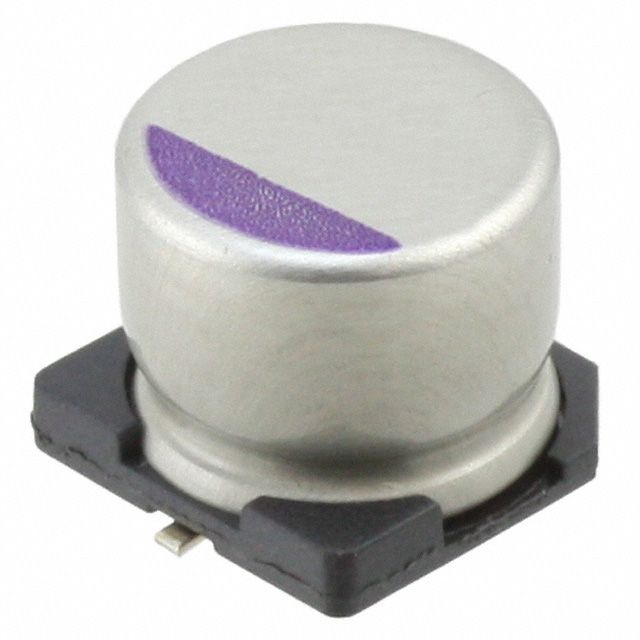

| Component Housing Style | Radial, Can - SMD |
Description
Perfectly designed for situations involving General Purpose. Provides a capacitance level rated at 10 µF to maintain circuit stability. Facilitates a maximum output current level set as 23.7 mA @ 120 Hz. Displays ESR rated at 65mOhm. Maximum installed height of 0.236" (6.00mm) for components affixed to the board. Operates with a durability of 2000 Hrs @ 125°C at specified temperature. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case Radial, Can - SMD that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. High-frequency ripple current 474 mA @ 100 kHz for improved performance. Low-frequency ripple current 23.7 mA @ 120 Hz for improved performance. Classification series for the product or component 94SVPD. Details on package size 0.248" Dia (6.30mm) for electrical or mechanical components. Measurement dimensions 0.248" Dia (6.30mm) for component specifications. Dimensions of surface mount pads 0.260" L x 0.260" W (6.60mm x 6.60mm) for PCB design. Precision tolerance level ±20% in manufacturing processes. Type classification Polymer for specifications. The operating voltage rating of the device 25 V.
