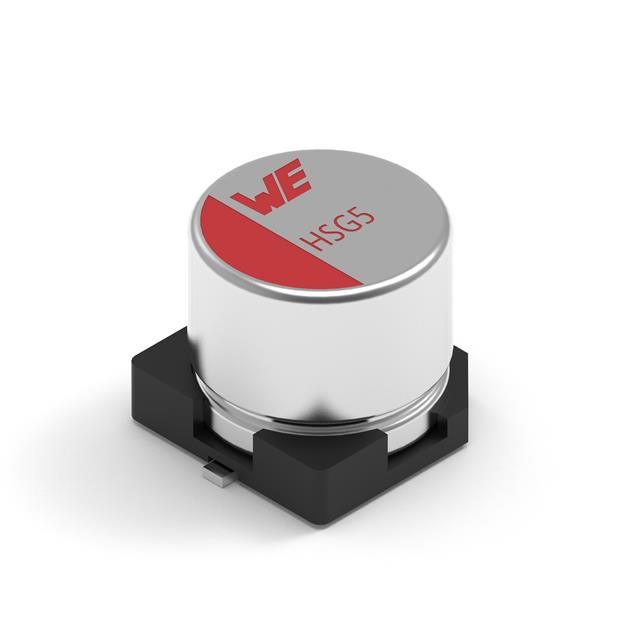

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | WCAP-HSG5 | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Device Type Classification | Hybrid | |
| Storage Capacity Electrical | 33 µF | |
| Accuracy Tolerance Percentage | ±20% | |
| Rated Operating Voltage | 100 V | |
| Series Resistance Equivalent | 40mOhm | |
| Expected Life at Temperature | 10000 Hrs @ 105°C | |
| Ambient Temp Range | -55°C ~ 105°C | |
| Performance Rating Specs | - | |
| Intended Uses | General Purpose | |
| Key Product Highlights | - | |
| Low-Freq Ripple Amps | 160 mA @ 100 Hz | |
| High-Freq Ripple Amps | 1.6 A @ 100 kHz | |
| AC Resistance Value | - | |
| Pin Lead Gap | - | |
| Package Size Specs | 0.394" Dia (10.00mm) | |
| Maximum Mounted Height | 0.500" (12.70mm) | |
| SMD Pad Footprint | 0.406" L x 0.406" W (10.30mm x 10.30mm) | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Radial, Can - SMD |
Description
Perfectly designed for situations involving General Purpose. Provides a capacitance level rated at 33 µF to maintain circuit stability. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Facilitates a maximum output current level set as 160 mA @ 100 Hz. Displays ESR rated at 40mOhm. Maximum installed height of 0.500" (12.70mm) for components affixed to the board. Operates with a durability of 10000 Hrs @ 105°C at specified temperature. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case Radial, Can - SMD that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. High-frequency ripple current 1.6 A @ 100 kHz for improved performance. Low-frequency ripple current 160 mA @ 100 Hz for improved performance. Classification series for the product or component WCAP-HSG5. Details on package size 0.394" Dia (10.00mm) for electrical or mechanical components. Measurement dimensions 0.394" Dia (10.00mm) for component specifications. Dimensions of surface mount pads 0.406" L x 0.406" W (10.30mm x 10.30mm) for PCB design. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Precision tolerance level ±20% in manufacturing processes. Type classification Hybrid for specifications. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. The operating voltage rating of the device 100 V.
