Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 3,260.66000 | ₹ 3,26,066.00 |
| 50 | ₹ 3,349.43000 | ₹ 1,67,471.50 |
| 25 | ₹ 3,440.64000 | ₹ 86,016.00 |
| 10 | ₹ 3,565.01000 | ₹ 35,650.10 |
| 5 | ₹ 3,662.13000 | ₹ 18,310.65 |
| 1 | ₹ 3,898.11000 | ₹ 3,898.11 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | ATE1 | |
| IC Encapsulation Type | Bag | |
| Availability Status | Active | |

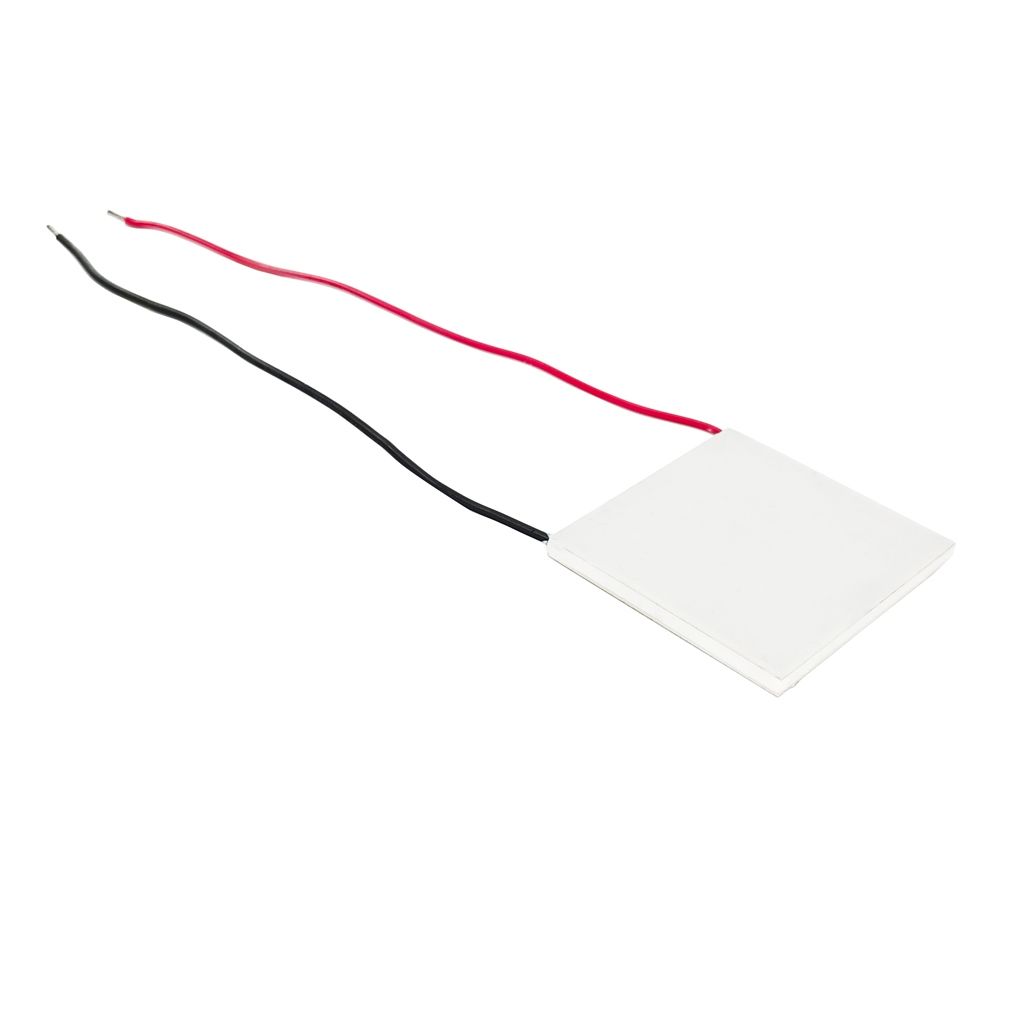

| Device Type Classification | TEC (Thermoelectric Cooler) | |
| Package Size Specs | Square - 40.00mm L x 40.00mm W | |
| Max Q at Holding Temp | 56.4W @ 68°C | |
| Max Temperature Delta at Holding | 68°C @ 68°C | |
| Vertical Dimension | 3.55mm | |
| Amplifier Stage Count | 1 | |
| Maximum Amp Rating | 3 A | |
| Peak Voltage Tolerance | 28.9 V | |
| Ohm Resistance Value | - | |
| Ambient Temp Range | 68°C | |
| Key Product Highlights | Lead Wires, Sealed |
Description
Indicates the maximum allowable current rating at 3 A. Reflects the Tmax variation at Th noted as 68°C @ 68°C. Equipped with features categorized as Lead Wires, Sealed. Features a height of 3.55mm for accurate dimensional precision. Overall stages 1 for systems or circuits with several phases. Temperature range 68°C for environmental conditions impacting thermal efficiency. Type of housing Bag for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Maximum Q at specified temperature threshold 56.4W @ 68°C for component specifications. Classification series for the product or component ATE1. Details on package size Square - 40.00mm L x 40.00mm W for electrical or mechanical components. Measurement dimensions Square - 40.00mm L x 40.00mm W for component specifications. Type classification TEC (Thermoelectric Cooler) for specifications. The maximum voltage 28.9 V specified by the device.
