Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 2,287.32000 | ₹ 2,28,732.00 |
| 50 | ₹ 2,349.60000 | ₹ 1,17,480.00 |
| 25 | ₹ 2,413.60000 | ₹ 60,340.00 |
| 10 | ₹ 2,500.91000 | ₹ 25,009.10 |
| 5 | ₹ 2,568.95000 | ₹ 12,844.75 |
| 1 | ₹ 2,734.29000 | ₹ 2,734.29 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | NL1025T | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |

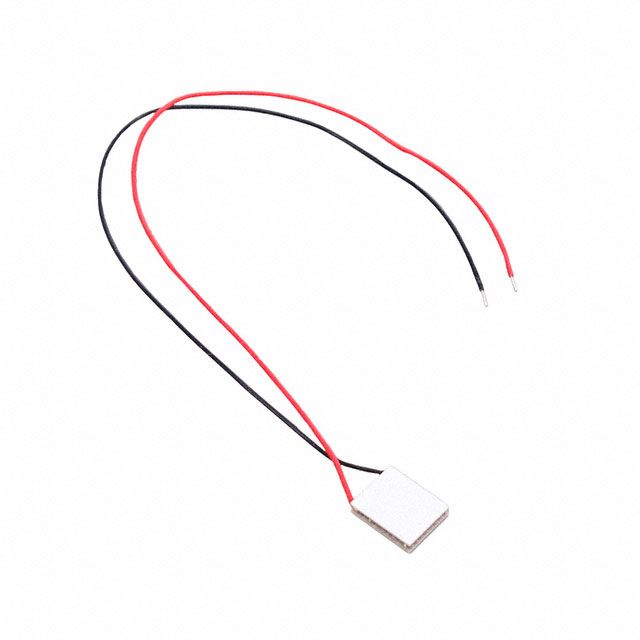

| Device Type Classification | TEC (Thermoelectric Cooler) | |
| Package Size Specs | Rectangular - 10.97mm L x 8.79mm W | |
| Max Q at Holding Temp | 5.2W @ 27°C | |
| Max Temperature Delta at Holding | 64°C @ 27°C | |
| Vertical Dimension | 2.16mm | |
| Amplifier Stage Count | 1 | |
| Maximum Amp Rating | 1.8 A | |
| Peak Voltage Tolerance | 4.4 V | |
| Ohm Resistance Value | 2.1 Ohms | |
| Ambient Temp Range | 85°C | |
| Key Product Highlights | Lead Wires |
Description
Indicates the maximum allowable current rating at 1.8 A. Reflects the Tmax variation at Th noted as 64°C @ 27°C. Equipped with features categorized as Lead Wires. Features a height of 2.16mm for accurate dimensional precision. Overall stages 1 for systems or circuits with several phases. Temperature range 85°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Maximum Q at specified temperature threshold 5.2W @ 27°C for component specifications. Resistance value 2.1 Ohms for electrical performance. Classification series for the product or component NL1025T. Details on package size Rectangular - 10.97mm L x 8.79mm W for electrical or mechanical components. Measurement dimensions Rectangular - 10.97mm L x 8.79mm W for component specifications. Type classification TEC (Thermoelectric Cooler) for specifications. The maximum voltage 4.4 V specified by the device.
