Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50000 | ₹ 13.63000 | ₹ 6,81,500.00 |
| 25000 | ₹ 13.86000 | ₹ 3,46,500.00 |
| 12500 | ₹ 14.14000 | ₹ 1,76,750.00 |
| 5000 | ₹ 14.61000 | ₹ 73,050.00 |
| 3500 | ₹ 14.83000 | ₹ 51,905.00 |
| 2500 | ₹ 15.06000 | ₹ 37,650.00 |
| 1500 | ₹ 15.44000 | ₹ 23,160.00 |
| 1000 | ₹ 15.79000 | ₹ 15,790.00 |
| 500 | ₹ 16.49000 | ₹ 8,245.00 |
| 250 | ₹ 17.34000 | ₹ 4,335.00 |
| 100 | ₹ 18.74000 | ₹ 1,874.00 |
| 25 | ₹ 21.67000 | ₹ 541.75 |
| 10 | ₹ 24.37000 | ₹ 243.70 |
| 1 | ₹ 34.69000 | ₹ 34.69 |

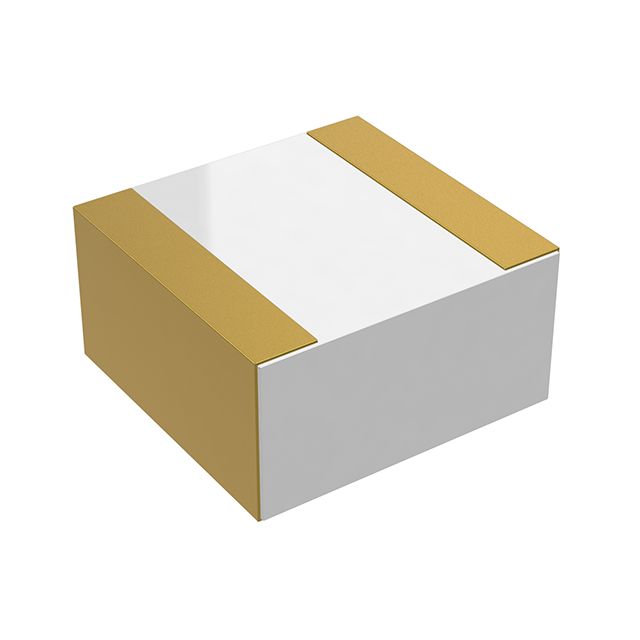

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Q-Bridge | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Intended Usage Scenario | Heat Transfer | |
| Device Type Classification | Thermal Bridge Jumper | |
| Physical Shape Form | Square | |
| Dimensional Outline Drawing | 1.27mm x 1.27mm | |
| Material Thickness Gauge | 0.0025" (0.064mm) | |
| Construction Material Type | Aluminum Nitride | |
| Bonding Agent Type | - | |
| Support Layer Material | - | |
| Visual Hue | - | |
| Material Heat Resistance | 7°C/W, 10°C/W | |
| Heat Transfer Coefficient | 100W/m-K, 153W/m-K |
Description
Type of construction material Aluminum Nitride for durability and efficiency. Shape outline 1.27mm x 1.27mm for device design and footprint. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component Q-Bridge. Shape Square for the part or device. Thermal conductivity coefficient 100W/m-K, 153W/m-K for effective heat transfer. Thermal resistivity measurement 7°C/W, 10°C/W for material insulation effectiveness. Measurement of thickness 0.0025" (0.064mm) for material or component dimensions. Type classification Thermal Bridge Jumper for specifications. Application Heat Transfer for defined purpose or objective.
