Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50000 | ₹ 2.48000 | ₹ 1,24,000.00 |
| 25000 | ₹ 2.54000 | ₹ 63,500.00 |
| 12500 | ₹ 2.61000 | ₹ 32,625.00 |
| 5000 | ₹ 2.73000 | ₹ 13,650.00 |
| 3500 | ₹ 2.78000 | ₹ 9,730.00 |
| 2500 | ₹ 2.84000 | ₹ 7,100.00 |
| 1500 | ₹ 2.94000 | ₹ 4,410.00 |
| 1000 | ₹ 3.03000 | ₹ 3,030.00 |
| 500 | ₹ 3.20000 | ₹ 1,600.00 |
| 250 | ₹ 119.32000 | ₹ 29,830.00 |
| 100 | ₹ 126.40000 | ₹ 12,640.00 |
| 25 | ₹ 141.27000 | ₹ 3,531.75 |
| 10 | ₹ 154.79000 | ₹ 1,547.90 |
| 1 | ₹ 209.05000 | ₹ 209.05 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Q-Bridge | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Intended Usage Scenario | Heat Transfer | |

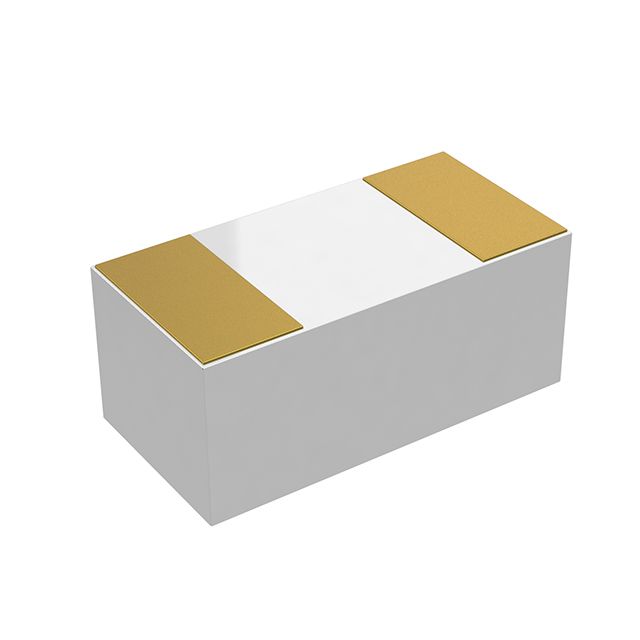

| Device Type Classification | Thermal Bridge Jumper | |
| Physical Shape Form | Rectangular | |
| Dimensional Outline Drawing | 1.52mm x 0.76mm | |
| Material Thickness Gauge | 0.0025" (0.064mm) | |
| Construction Material Type | Aluminum Nitride | |
| Bonding Agent Type | - | |
| Support Layer Material | - | |
| Visual Hue | - | |
| Material Heat Resistance | 13°C/W, 20°C/W | |
| Heat Transfer Coefficient | 50W/m-K, 76W/m-K |
Description
Type of construction material Aluminum Nitride for durability and efficiency. Shape outline 1.52mm x 0.76mm for device design and footprint. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component Q-Bridge. Shape Rectangular for the part or device. Thermal conductivity coefficient 50W/m-K, 76W/m-K for effective heat transfer. Thermal resistivity measurement 13°C/W, 20°C/W for material insulation effectiveness. Measurement of thickness 0.0025" (0.064mm) for material or component dimensions. Type classification Thermal Bridge Jumper for specifications. Application Heat Transfer for defined purpose or objective.
