Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

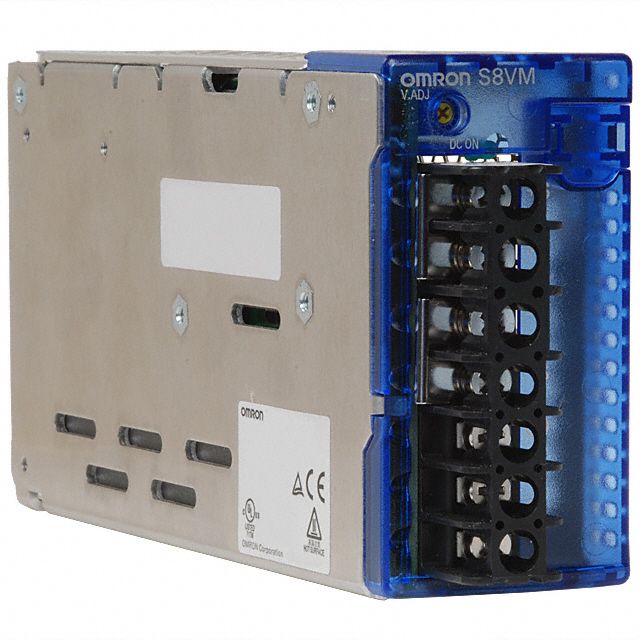

| Product Series Line | S8VM (150W) | |
| IC Encapsulation Type | Box | |
| Availability Status | Obsolete | |
| Device Type Classification | Enclosed | |
| Signal Output Quantity | 1 | |
| Supply Input Volts | 85 ~ 264 VAC | |
| First Rail Output Volts | 5V | |
| Second Rail Output Volts | - | |
| Third Rail Output Volts | - | |
| Fourth Rail Output Volts | - | |
| Fifth Rail Output Volts | - | |
| Sixth Rail Output Volts | - | |
| First Output Current | 27 A | |
| Second Output Current | - | |
| Third Output Current | - | |
| Fourth Output Current | - | |
| Fifth Output Current | - | |
| Sixth Output Current | - | |
| Wattage Power Level | 150W | |
| Intended Uses | ITE (Commercial) | |
| Isolation Barrier Voltage | 3 kV | |
| Performance Efficiency Rating | 81% | |
| Ambient Temp Range | -10°C ~ 70°C (With Derating) | |
| Key Product Highlights | Adjustable Output, Universal Input | |
| Attachment Mounting Style | Chassis Mount | |
| Package Size Specs | 6.32" L x 1.48" W x 3.25" H (160.5mm x 37.5mm x 82.5mm) | |
| Certification Body | CE, cULus, cURus, VDE | |
| Compliance Standard ID | - |
Description
Perfectly designed for situations involving ITE (Commercial). Complies with the criteria of entities acknowledged as CE, cULus, cURus, VDE. Represents the current for output 1 set to 27 A. Offers an efficiency rating calculated at 81%. Equipped with features categorized as Adjustable Output, Universal Input. The input voltage established at 85 ~ 264 VAC for reliable performance. Mounting configuration Chassis Mount for structural stability. Overall outputs 1 for device connections. Temperature range -10°C ~ 70°C (With Derating) for environmental conditions impacting thermal efficiency. Voltage 5V for optimal output electric potential. Type of housing Box for safeguarding or transporting components. Power measured in watts 150W for optimal operation. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component S8VM (150W). Details on package size 6.32" L x 1.48" W x 3.25" H (160.5mm x 37.5mm x 82.5mm) for electrical or mechanical components. Measurement dimensions 6.32" L x 1.48" W x 3.25" H (160.5mm x 37.5mm x 82.5mm) for component specifications. Current supply level 85 ~ 264 VAC for electrical parameters. Type classification Enclosed for specifications. Input voltage 85 ~ 264 VAC required for devices. Isolation voltage 3 kV for electrical safety. Output 1 voltage 5V across different outputs.
