Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Enpirion® | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Device Type Classification | Non-Isolated PoL Module, Digital | |
| Signal Output Quantity | 1 | |
| Minimum Input Voltage | 4.5V | |
| Maximum Input Voltage | 16V | |
| First Rail Output Volts | 0.5 ~ 1.3V | |
| Second Rail Output Volts | - | |
| Third Rail Output Volts | - | |
| Fourth Rail Output Volts | - | |
| Peak Output Current | 80A | |
| Wattage Power Level | - | |
| Isolation Barrier Voltage | - | |
| Intended Uses | ITE (Commercial) | |
| Key Product Highlights | OCP, OTP, UVLO | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Performance Efficiency Rating | 92% | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

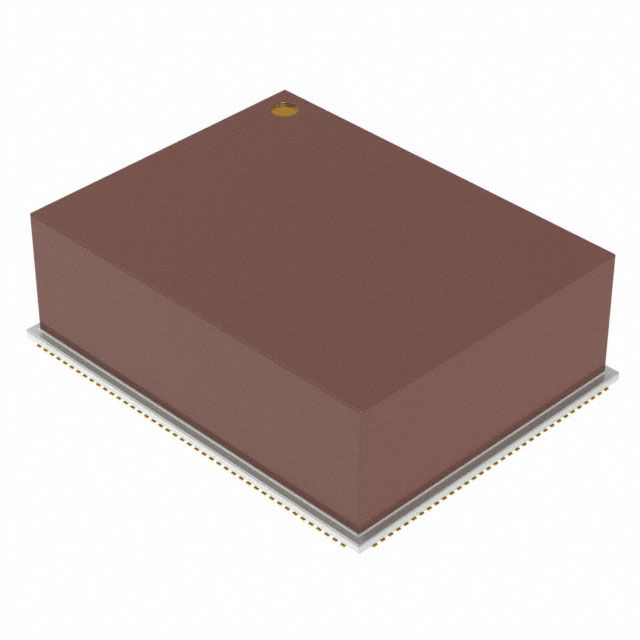

| Component Housing Style | 152-PowerBFQFN Module | |
| Package Size Specs | 0.91" L x 0.71" W x 0.27" H (23.0mm x 18.0mm x 7.0mm) | |
| Vendor Package Type | 152-QFN (23x18) | |
| Adjustment Capabilities | - | |
| Certification Body | - | |
| Compliance Standard ID | - |
Description
Perfectly designed for situations involving ITE (Commercial). Supplies peak output current defined as 80A. Offers an efficiency rating calculated at 92%. Equipped with features categorized as OCP, OTP, UVLO. The input voltage established at 4.5V for reliable performance. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Voltage 0.5 ~ 1.3V for optimal output electric potential. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 152-PowerBFQFN Module that offers mechanical and thermal protection. Type of package 152-QFN (23x18) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component Enpirion®. Details on package size 0.91" L x 0.71" W x 0.27" H (23.0mm x 18.0mm x 7.0mm) for electrical or mechanical components. Measurement dimensions 0.91" L x 0.71" W x 0.27" H (23.0mm x 18.0mm x 7.0mm) for component specifications. Supplier package type 152-QFN (23x18) for component selection. Type classification Non-Isolated PoL Module, Digital for specifications. Maximum input voltage 16V for safeguarding. Minimum input voltage 4.5V for operation. Output 1 voltage 0.5 ~ 1.3V across different outputs.
