Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Enpirion® 5300 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Device Type Classification | Non-Isolated PoL Module | |
| Signal Output Quantity | 1 | |
| Minimum Input Voltage | 2.375V | |
| Maximum Input Voltage | 5.5V | |
| First Rail Output Volts | 0.75 ~ 5.05V | |
| Second Rail Output Volts | - | |
| Third Rail Output Volts | - | |
| Fourth Rail Output Volts | - | |
| Peak Output Current | 9A | |
| Wattage Power Level | - | |
| Isolation Barrier Voltage | - | |
| Intended Uses | ITE (Commercial) | |
| Key Product Highlights | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Performance Efficiency Rating | 93% | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

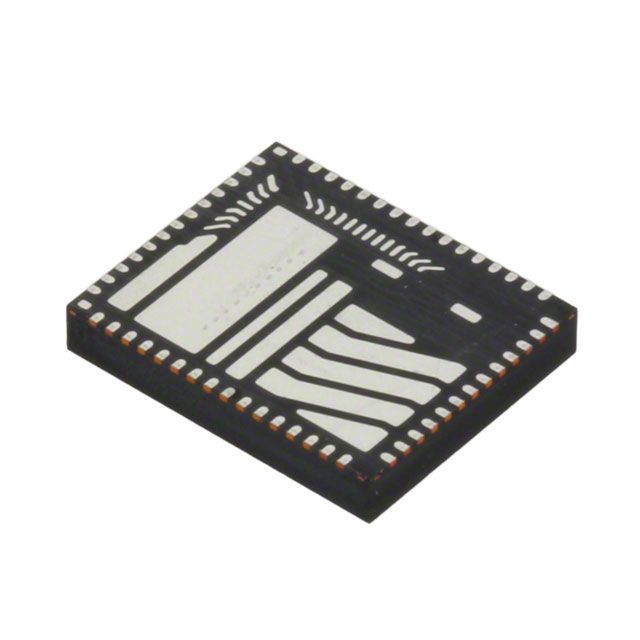

| Component Housing Style | 58-PowerQFN Module | |
| Package Size Specs | 0.47" L x 0.39" W x 0.07" H (12.0mm x 10.0mm x 1.9mm) | |
| Vendor Package Type | 58-QFN (12x10) | |
| Adjustment Capabilities | Enable, Active High | |
| Certification Body | - | |
| Compliance Standard ID | - |
Description
Perfectly designed for situations involving ITE (Commercial). Is equipped with control features recognized as Enable, Active High. Supplies peak output current defined as 9A. Offers an efficiency rating calculated at 93%. Equipped with features categorized as Remote On/Off, OCP, OTP, OVP, SCP, UVLO. The input voltage established at 2.375V for reliable performance. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Voltage 0.75 ~ 5.05V for optimal output electric potential. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 58-PowerQFN Module that offers mechanical and thermal protection. Type of package 58-QFN (12x10) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component Enpirion® 5300. Details on package size 0.47" L x 0.39" W x 0.07" H (12.0mm x 10.0mm x 1.9mm) for electrical or mechanical components. Measurement dimensions 0.47" L x 0.39" W x 0.07" H (12.0mm x 10.0mm x 1.9mm) for component specifications. Supplier package type 58-QFN (12x10) for component selection. Type classification Non-Isolated PoL Module for specifications. Maximum input voltage 5.5V for safeguarding. Minimum input voltage 2.375V for operation. Output 1 voltage 0.75 ~ 5.05V across different outputs.
