Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Off-State Voltage Rating | 400 V | |
| Max Gate Trigger Volts | 800 mV | |
| Max Gate Trigger Amps | 500 µA | |
| Max On-State Voltage Drop | 1.6 V | |
| Max Average On-State Current | 6.4 A | |
| Max RMS On-State Current | 10 A | |
| Maximum Holding Current | 8 mA | |
| Maximum Off-State Current | 5 µA | |
| Non-Repetitive Surge 50/60Hz | 83A, 100A | |
| Silicon Controlled Rectifier Style | Sensitive Gate | |
| Ambient Temp Range | -40°C ~ 110°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

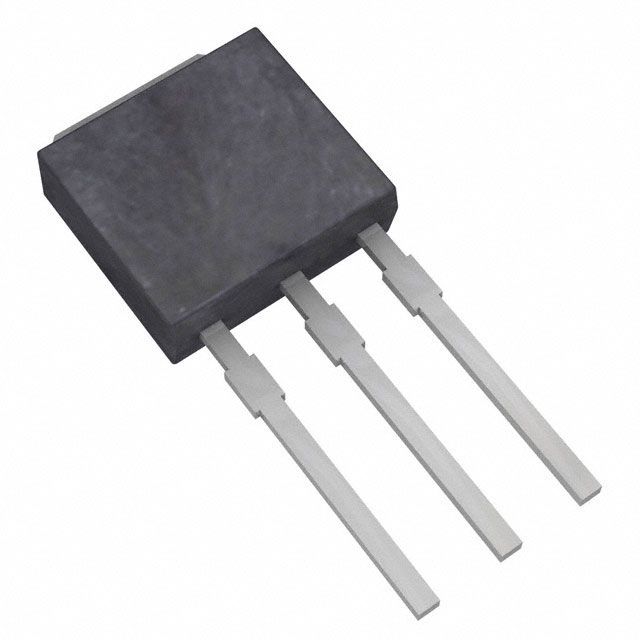

| Component Housing Style | TO-251-3 Short Leads, IPAK, TO-251AA | |
| Vendor Package Type | TO-251AA |
Description
Features a maximum gate trigger current (Igt) rated at 500 µA. Indicates the maximum holding current recorded at 8 mA. Is designed to manage surge current Itsm rated at 83A, 100A for 50/60Hz. Features a maximum off-state current of 5 µA. Offers a maximum average on-state current It(AV) of 6.4 A. Supports RMS on-state current rated at 10 A. Mounting configuration Through Hole for structural stability. Temperature range -40°C ~ 110°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case TO-251-3 Short Leads, IPAK, TO-251AA that offers mechanical and thermal protection. Type of package TO-251AA that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. The Sensitive Gate SCR type for thyristor properties. Supplier package type TO-251AA for component selection. Maximum gate trigger voltage 800 mV for SCR devices. The voltage 400 V when the device is not active for switches or semiconductors. The highest voltage drop Vtm 1.6 V in the active state for semiconductors.
