Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 800 | ₹ 511.79000 | ₹ 4,09,432.00 |
| 600 | ₹ 515.99000 | ₹ 3,09,594.00 |
| 400 | ₹ 525.54000 | ₹ 2,10,216.00 |
| 200 | ₹ 532.10000 | ₹ 1,06,420.00 |
| 100 | ₹ 552.97000 | ₹ 55,297.00 |
Stock:
Distributor: 69
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 565.15000 | ₹ 56,515.00 |
| 250 | ₹ 558.92000 | ₹ 1,39,730.00 |
| 500 | ₹ 552.69000 | ₹ 2,76,345.00 |
Stock:
Distributor: 11
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 300 | ₹ 760.95000 | ₹ 2,28,285.00 |
| 100 | ₹ 825.03000 | ₹ 82,503.00 |
| 25 | ₹ 890.00000 | ₹ 22,250.00 |
| 5 | ₹ 959.42000 | ₹ 4,797.10 |
| 1 | ₹ 1,084.02000 | ₹ 1,084.02 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 1,077.79000 | ₹ 1,077.79 |
| 10 | ₹ 877.54000 | ₹ 8,775.40 |
| 100 | ₹ 564.26000 | ₹ 56,426.00 |
| 1000 | ₹ 552.69000 | ₹ 5,52,690.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Off-State Voltage Rating | 150 V | |
| Max Gate Trigger Volts | 2 V | |
| Max Gate Trigger Amps | 40 mA | |
| Max On-State Voltage Drop | 2 V | |
| Max Average On-State Current | 16 A | |
| Max RMS On-State Current | 25 A | |
| Maximum Holding Current | 20 mA | |
| Maximum Off-State Current | 6.5 mA | |
| Non-Repetitive Surge 50/60Hz | 145A, 150A | |
| Silicon Controlled Rectifier Style | Standard Recovery | |
| Ambient Temp Range | -65°C ~ 125°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |

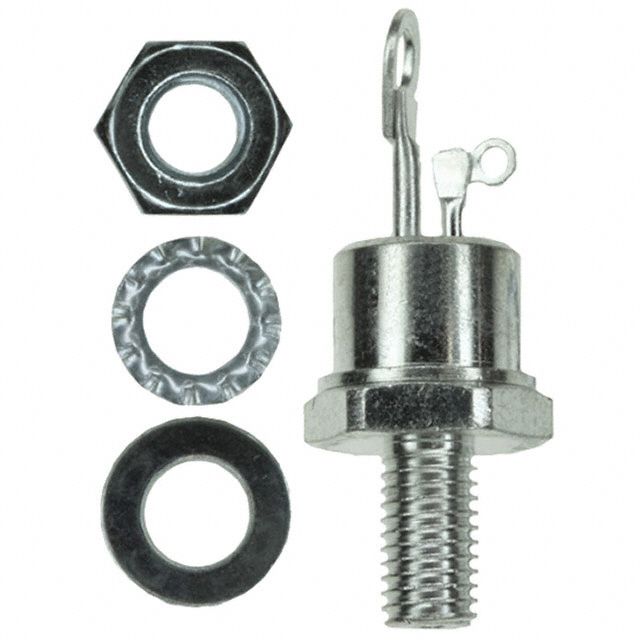

| Attachment Mounting Style | Chassis, Stud Mount | |
| Component Housing Style | TO-208AA, TO-48-3, Stud | |
| Vendor Package Type | TO-208AA (TO-48) |
Description
Features a maximum gate trigger current (Igt) rated at 40 mA. Indicates the maximum holding current recorded at 20 mA. Is designed to manage surge current Itsm rated at 145A, 150A for 50/60Hz. Features a maximum off-state current of 6.5 mA. Offers a maximum average on-state current It(AV) of 16 A. Supports RMS on-state current rated at 25 A. Mounting configuration Chassis, Stud Mount for structural stability. Temperature range -65°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case TO-208AA, TO-48-3, Stud that offers mechanical and thermal protection. Type of package TO-208AA (TO-48) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. The Standard Recovery SCR type for thyristor properties. Supplier package type TO-208AA (TO-48) for component selection. Maximum gate trigger voltage 2 V for SCR devices. The voltage 150 V when the device is not active for switches or semiconductors. The highest voltage drop Vtm 2 V in the active state for semiconductors.
