Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 24 | ₹ 9,491.53000 | ₹ 2,27,796.72 |
| 18 | ₹ 9,583.52000 | ₹ 1,72,503.36 |
| 12 | ₹ 9,760.99000 | ₹ 1,17,131.88 |
| 6 | ₹ 9,883.01000 | ₹ 59,298.06 |
| 3 | ₹ 10,071.85000 | ₹ 30,215.55 |
Stock:
Distributor: 69
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3 | ₹ 9,887.01000 | ₹ 29,661.03 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Off-State Voltage Rating | 1.2 kV | |
| Max Gate Trigger Volts | 3 V | |
| Max Gate Trigger Amps | 200 mA | |
| Max On-State Voltage Drop | 1.9 V | |
| Max Average On-State Current | 650 A | |
| Max RMS On-State Current | 1230 A | |
| Maximum Holding Current | 600 mA | |
| Maximum Off-State Current | 50 mA | |
| Non-Repetitive Surge 50/60Hz | 9000A, 9420A | |
| Silicon Controlled Rectifier Style | Standard Recovery | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Clamp On | |

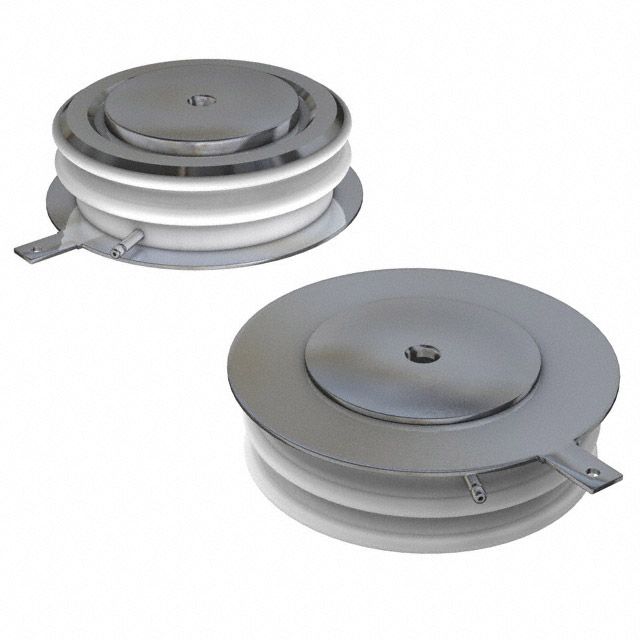

| Component Housing Style | TO-200AB, E-PUK | |
| Vendor Package Type | TO-200AB (E-Puk) |
Description
Features a maximum gate trigger current (Igt) rated at 200 mA. Indicates the maximum holding current recorded at 600 mA. Is designed to manage surge current Itsm rated at 9000A, 9420A for 50/60Hz. Features a maximum off-state current of 50 mA. Offers a maximum average on-state current It(AV) of 650 A. Supports RMS on-state current rated at 1230 A. Mounting configuration Clamp On for structural stability. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case TO-200AB, E-PUK that offers mechanical and thermal protection. Type of package TO-200AB (E-Puk) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. The Standard Recovery SCR type for thyristor properties. Supplier package type TO-200AB (E-Puk) for component selection. Maximum gate trigger voltage 3 V for SCR devices. The voltage 1.2 kV when the device is not active for switches or semiconductors. The highest voltage drop Vtm 1.9 V in the active state for semiconductors.
