Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 25000 | ₹ 26.11000 | ₹ 6,52,750.00 |
| 10000 | ₹ 26.46000 | ₹ 2,64,600.00 |
| 7000 | ₹ 27.42000 | ₹ 1,91,940.00 |
| 5000 | ₹ 28.40000 | ₹ 1,42,000.00 |
| 3000 | ₹ 30.07000 | ₹ 90,210.00 |
| 2000 | ₹ 31.54000 | ₹ 63,080.00 |
| 1000 | ₹ 34.45000 | ₹ 34,450.00 |
| 500 | ₹ 37.90000 | ₹ 18,950.00 |
| 100 | ₹ 48.61000 | ₹ 4,861.00 |
| 10 | ₹ 73.57000 | ₹ 735.70 |
| 1 | ₹ 116.54000 | ₹ 116.54 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Field Effect Transistor Type | N-Channel, Depletion Mode | |
| Core Technology Platform | MOSFET (Metal Oxide) | |
| Drain-Source Breakdown Volts | 60 V | |
| Continuous Drain Current at 25C | - | |
| Gate Drive Voltage Range | 0V | |
| Max On-State Resistance | 1Ohm @ 300mA, 0V | |
| Max Threshold Gate Voltage | - | |
| Max Gate Charge at Vgs | - | |
| Maximum Gate Voltage | ±15V | |
| Max Input Cap at Vds | - | |
| Transistor Special Function | - | |
| Max Heat Dissipation | 1.1W (Ta) | |
| Ambient Temp Range | -55°C ~ 125°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

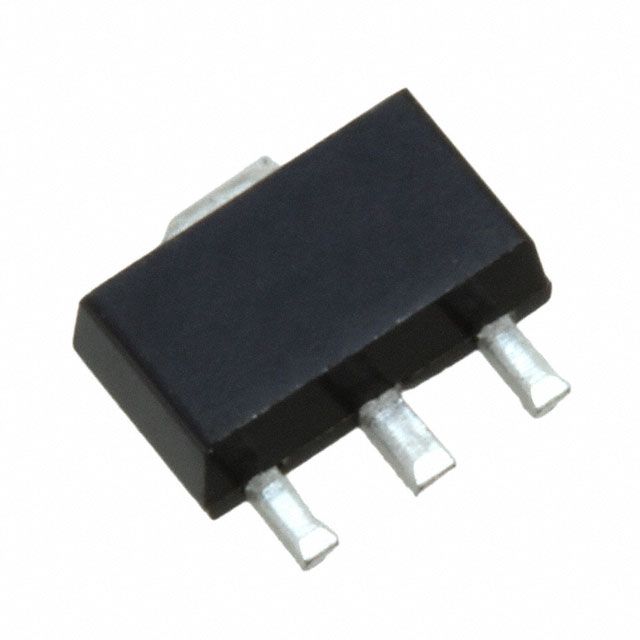

| Vendor Package Type | SOT-89 | |
| Component Housing Style | TO-243AA |
Description
Supports a Vdss drain-to-source voltage rated at 60 V. Supports the drive voltage noted at 0V for RdsOn control. Includes FET category defined as N-Channel, Depletion Mode. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case TO-243AA that offers mechanical and thermal protection. Type of package SOT-89 that preserves the integrity of the device. The maximum power dissipation 1.1W (Ta) for efficient thermal management. Product status Active concerning availability and lifecycle. Maximum Rds(on) at Id and Vgs 1Ohm @ 300mA, 0V for MOSFET specifications. Supplier package type SOT-89 for component selection. The primary technology platform MOSFET (Metal Oxide) linked to the product category. Maximum Vgs ±15V for MOSFET specifications.
