Description

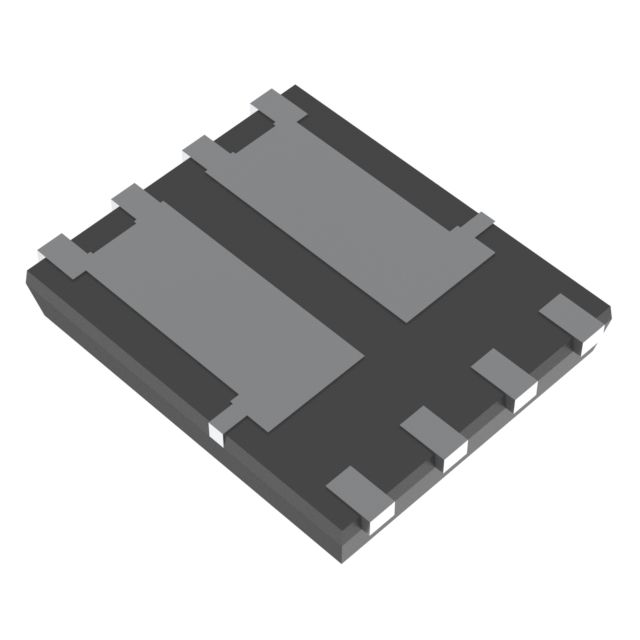

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Configured in a manner identified as 2 N-Channel (Dual). Is capable of sustaining a continuous drain current (Id) of 13.5A (Ta), 24A (Tc) at 25°C. Supports a Vdss drain-to-source voltage rated at 60V. Ensures maximum 22nC @ 10V gate charge at Vgs for improved switching efficiency. Maintains 22nC @ 10V gate charge at Vgs for dependable MOSFET operation. The maximum input capacitance reaches 1400pF @ 30V at Vds to protect the device. The input capacitance is specified at 1400pF @ 30V at Vds for peak performance. Mounting configuration Surface Mount for structural stability. Temperature range 150°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 8-PowerTDFN that offers mechanical and thermal protection. Type of package 8-HSOP that preserves the integrity of the device. Maximum power capability 3W (Ta), 26W (Tc) for safeguarding the device. Product status Active concerning availability and lifecycle. Maximum Rds(on) at Id 22nC @ 10V for MOSFET performance. Maximum Rds(on) at Id and Vgs 11.5mOhm @ 13.5A, 10V for MOSFET specifications. Supplier package type 8-HSOP for component selection. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. The primary technology platform MOSFET (Metal Oxide) linked to the product category. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Maximum Vgs(th) at Id 2.5V @ 1mA for MOSFET threshold specifications.
