Stock:
Distributor: 122
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 466 | ₹ 19.08000 | ₹ 8,891.28 |
Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 473 | ₹ 19.08000 | ₹ 9,024.84 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 150000 | ₹ 24.48000 | ₹ 36,72,000.00 |
| 1000 | ₹ 32.66000 | ₹ 32,660.00 |
| 500 | ₹ 35.97000 | ₹ 17,985.00 |
| 100 | ₹ 46.24000 | ₹ 4,624.00 |
| 10 | ₹ 70.13000 | ₹ 701.30 |
| 1 | ₹ 111.25000 | ₹ 111.25 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT) | |
| Availability Status | Obsolete | |
| Core Technology Platform | MOSFET (Metal Oxide) | |
| Setup Arrangement | 2 N-Channel (Dual) | |
| Transistor Special Function | - | |
| Drain-Source Breakdown Volts | 20V | |
| Continuous Drain Current at 25C | 6.5A (Ta) | |
| Max On-State Resistance | 22mOhm @ 6.5A, 4.5V | |
| Max Threshold Gate Voltage | 1V @ 250µA | |
| Max Gate Charge at Vgs | 15nC @ 4.5V | |
| Max Input Cap at Vds | 950pF @ 10V | |
| Maximum Power Handling | 1.04W | |
| Ambient Temp Range | -55°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

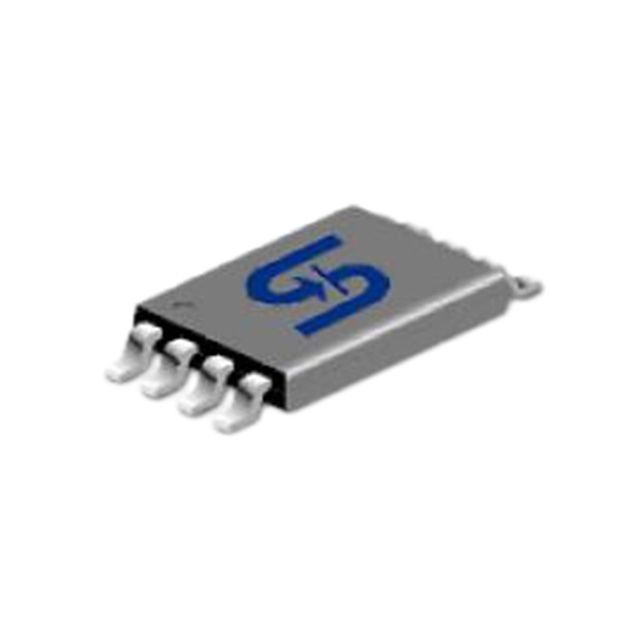

| Component Housing Style | 8-TSSOP (0.173", 4.40mm Width) | |
| Vendor Package Type | 8-TSSOP |
Description
Configured in a manner identified as 2 N-Channel (Dual). Is capable of sustaining a continuous drain current (Id) of 6.5A (Ta) at 25°C. Supports a Vdss drain-to-source voltage rated at 20V. Ensures maximum 15nC @ 4.5V gate charge at Vgs for improved switching efficiency. Maintains 15nC @ 4.5V gate charge at Vgs for dependable MOSFET operation. The maximum input capacitance reaches 950pF @ 10V at Vds to protect the device. The input capacitance is specified at 950pF @ 10V at Vds for peak performance. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT) for safeguarding or transporting components. Style of the enclosure/case 8-TSSOP (0.173", 4.40mm Width) that offers mechanical and thermal protection. Type of package 8-TSSOP that preserves the integrity of the device. Maximum power capability 1.04W for safeguarding the device. Product status Obsolete concerning availability and lifecycle. Maximum Rds(on) at Id 15nC @ 4.5V for MOSFET performance. Maximum Rds(on) at Id and Vgs 22mOhm @ 6.5A, 4.5V for MOSFET specifications. Supplier package type 8-TSSOP for component selection. The primary technology platform MOSFET (Metal Oxide) linked to the product category. Maximum Vgs(th) at Id 1V @ 250µA for MOSFET threshold specifications.
