Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 30000 | ₹ 17.24000 | ₹ 5,17,200.00 |
| 21000 | ₹ 17.40000 | ₹ 3,65,400.00 |
| 15000 | ₹ 17.56000 | ₹ 2,63,400.00 |
| 9000 | ₹ 17.84000 | ₹ 1,60,560.00 |
| 6000 | ₹ 18.09000 | ₹ 1,08,540.00 |
| 3000 | ₹ 18.60000 | ₹ 55,800.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | TrenchFET® | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Core Technology Platform | MOSFET (Metal Oxide) | |
| Setup Arrangement | 2 N-Channel (Dual) | |
| Transistor Special Function | - | |
| Drain-Source Breakdown Volts | 20V | |
| Continuous Drain Current at 25C | 4.5A (Ta), 4.5A (Tc) | |
| Max On-State Resistance | 46mOhm @ 3.9A, 4.5V | |
| Max Threshold Gate Voltage | 1.4V @ 250µA | |
| Max Gate Charge at Vgs | 3.5nC @ 10V | |
| Max Input Cap at Vds | 350pF @ 10V | |
| Maximum Power Handling | 1.9W (Ta), 7.8W (Tc) | |
| Ambient Temp Range | -55°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

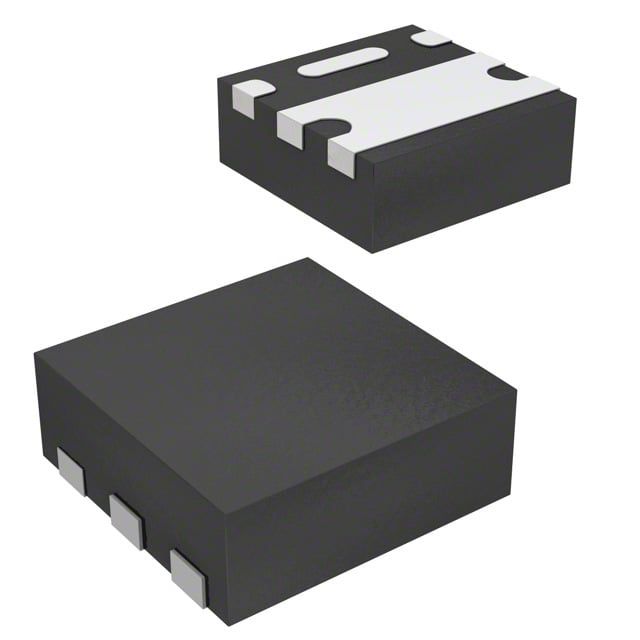

| Component Housing Style | PowerPAK® SC-70-6 | |
| Vendor Package Type | PowerPAK® SC-70-6 |
Description
Configured in a manner identified as 2 N-Channel (Dual). Is capable of sustaining a continuous drain current (Id) of 4.5A (Ta), 4.5A (Tc) at 25°C. Supports a Vdss drain-to-source voltage rated at 20V. Ensures maximum 3.5nC @ 10V gate charge at Vgs for improved switching efficiency. Maintains 3.5nC @ 10V gate charge at Vgs for dependable MOSFET operation. The maximum input capacitance reaches 350pF @ 10V at Vds to protect the device. The input capacitance is specified at 350pF @ 10V at Vds for peak performance. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case PowerPAK® SC-70-6 that offers mechanical and thermal protection. Type of package PowerPAK® SC-70-6 that preserves the integrity of the device. Maximum power capability 1.9W (Ta), 7.8W (Tc) for safeguarding the device. Product status Active concerning availability and lifecycle. Maximum Rds(on) at Id 3.5nC @ 10V for MOSFET performance. Maximum Rds(on) at Id and Vgs 46mOhm @ 3.9A, 4.5V for MOSFET specifications. Classification series for the product or component TrenchFET®. Supplier package type PowerPAK® SC-70-6 for component selection. The primary technology platform MOSFET (Metal Oxide) linked to the product category. Maximum Vgs(th) at Id 1.4V @ 250µA for MOSFET threshold specifications.
