Description

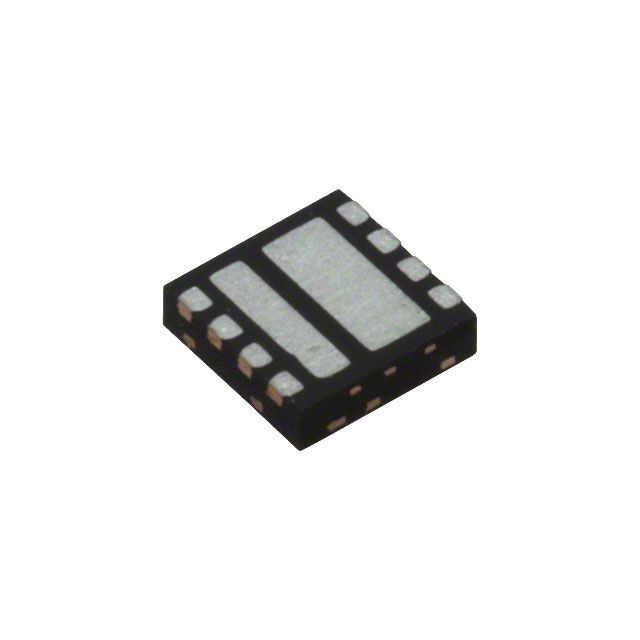

Configured in a manner identified as 2 N-Channel (Dual). Is capable of sustaining a continuous drain current (Id) of 17A (Tc), 30A (Tc) at 25°C. Supports a Vdss drain-to-source voltage rated at 30V. Ensures maximum 5nC @ 4.5V, 9nC @ 4.5V gate charge at Vgs for improved switching efficiency. Maintains 5nC @ 4.5V, 9nC @ 4.5V gate charge at Vgs for dependable MOSFET operation. The maximum input capacitance reaches 325pF @ 15V, 650pF @ 15V at Vds to protect the device. The input capacitance is specified at 325pF @ 15V, 650pF @ 15V at Vds for peak performance. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 8-PowerWDFN that offers mechanical and thermal protection. Type of package 8-Power33 (3x3) that preserves the integrity of the device. Maximum power capability 16W, 16.7W for safeguarding the device. Product status Active concerning availability and lifecycle. Maximum Rds(on) at Id 5nC @ 4.5V, 9nC @ 4.5V for MOSFET performance. Maximum Rds(on) at Id and Vgs 28.5mOhm @ 10A, 10V, 11.5mOhm @ 14.4A, 10V for MOSFET specifications. Classification series for the product or component PowerPAIR®, TrenchFET®. Supplier package type 8-Power33 (3x3) for component selection. The primary technology platform MOSFET (Metal Oxide) linked to the product category. Maximum Vgs(th) at Id 2.2V @ 250µA, 2.4V @ 250µA for MOSFET threshold specifications.
