Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 62500 | ₹ 12.23000 | ₹ 7,64,375.00 |
| 25000 | ₹ 12.52000 | ₹ 3,13,000.00 |
| 17500 | ₹ 12.98000 | ₹ 2,27,150.00 |
| 12500 | ₹ 13.46000 | ₹ 1,68,250.00 |
| 7500 | ₹ 14.26000 | ₹ 1,06,950.00 |
| 5000 | ₹ 14.97000 | ₹ 74,850.00 |
| 2500 | ₹ 16.36000 | ₹ 40,900.00 |
| 1000 | ₹ 18.62000 | ₹ 18,620.00 |
| 500 | ₹ 20.70000 | ₹ 10,350.00 |
| 100 | ₹ 27.15000 | ₹ 2,715.00 |
| 10 | ₹ 42.08000 | ₹ 420.80 |
| 1 | ₹ 67.61000 | ₹ 67.61 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Cut Tape (CT) | |
| Availability Status | Active | |
| AC Switch Triac Style | Standard | |
| Off-State Voltage Rating | 800 V | |
| Max RMS On-State Current | 12 A | |
| Max Gate Trigger Volts | 1.5 V | |
| Non-Repetitive Surge 50/60Hz | 120A @ 50Hz | |
| Max Gate Trigger Amps | 50 mA | |
| Maximum Holding Current | 60 mA | |
| Setup Arrangement | Single | |
| Ambient Temp Range | -40°C ~ 125°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

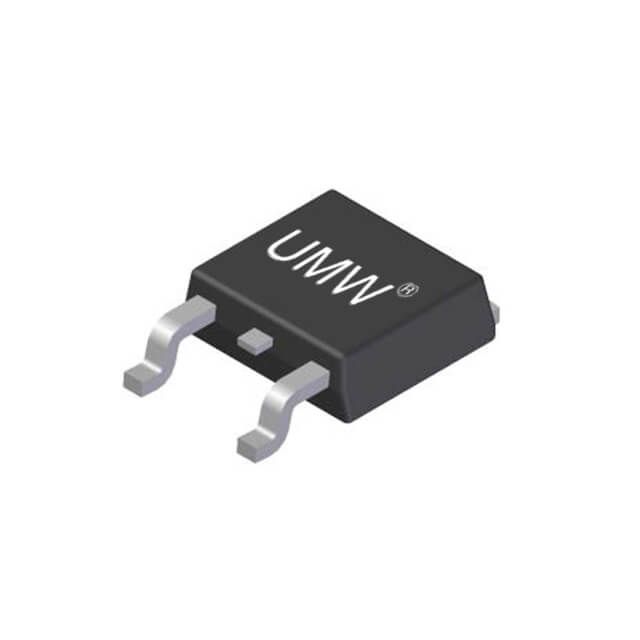

| Component Housing Style | TO-252-3, DPAK (2 Leads + Tab), SC-63 | |
| Vendor Package Type | TO-252 (DPAK) |
Description
Configured in a manner identified as Single. Features a maximum gate trigger current (Igt) rated at 50 mA. Indicates the maximum holding current recorded at 60 mA. Is designed to manage surge current Itsm rated at 120A @ 50Hz for 50/60Hz. Supports RMS on-state current rated at 12 A. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Cut Tape (CT) for safeguarding or transporting components. Style of the enclosure/case TO-252-3, DPAK (2 Leads + Tab), SC-63 that offers mechanical and thermal protection. Type of package TO-252 (DPAK) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type TO-252 (DPAK) for component selection. Style of triac Standard used for alternating current switching. Maximum gate trigger voltage 1.5 V for SCR devices. The voltage 800 V when the device is not active for switches or semiconductors.
