Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3620 | ₹ 7.12000 | ₹ 25,774.40 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | TDZxJ | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Nominal Zener Voltage | 5.6 V | |
| Accuracy Tolerance Percentage | ±2% | |
| Maximum Power Handling | 500 mW | |
| Maximum Zener Impedance | 40 Ohms | |
| Reverse Leak at Voltage | 10 µA @ 2.5 V | |
| Max Forward Voltage Drop | 1.1 V @ 100 mA | |
| Ambient Temp Range | -55°C ~ 150°C | |
| Quality Grade Level | Automotive | |
| Certification Qualification | AEC-Q101 | |
| Attachment Mounting Style | Surface Mount | |

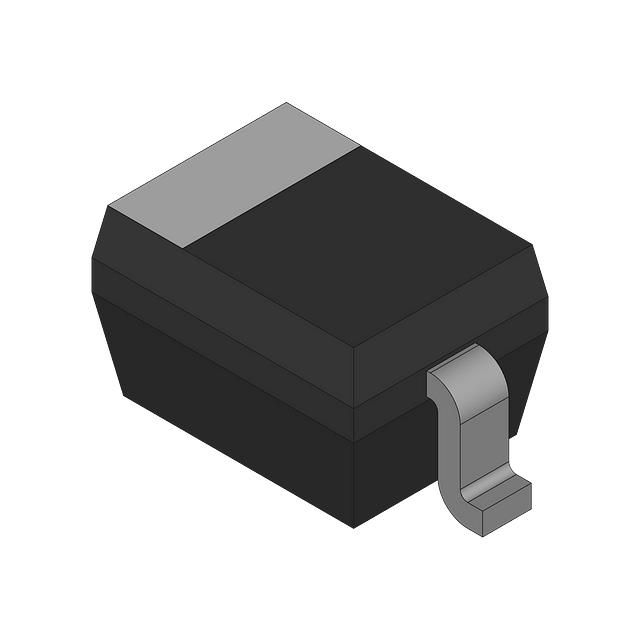

| Component Housing Style | SC-90, SOD-323F | |
| Vendor Package Type | SOD-323F |
Description
Shows reverse leakage current noted at 10 µA @ 2.5 V at Vr. Evaluated as Automotive grade for quality control. Maximum Zzt impedance of 40 Ohms ensures circuit reliability. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 150°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case SC-90, SOD-323F that offers mechanical and thermal protection. Type of package SOD-323F that preserves the integrity of the device. Maximum power capability 500 mW for safeguarding the device. Product status Active concerning availability and lifecycle. Certification AEC-Q101 for compliance with testing or regulatory standards. Classification series for the product or component TDZxJ. Supplier package type SOD-323F for component selection. Precision tolerance level ±2% in manufacturing processes. Maximum forward voltage drop Vf at If 1.1 V @ 100 mA for diodes. Typical Zener voltage Vz 5.6 V for voltage stabilization.
