Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Nominal Zener Voltage | 2.2 V | |
| Accuracy Tolerance Percentage | ±5% | |
| Maximum Power Handling | 300 mW | |
| Maximum Zener Impedance | 100 Ohms | |
| Reverse Leak at Voltage | 120 µA @ 700 mV | |
| Max Forward Voltage Drop | 900 mV @ 10 mA | |
| Ambient Temp Range | 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

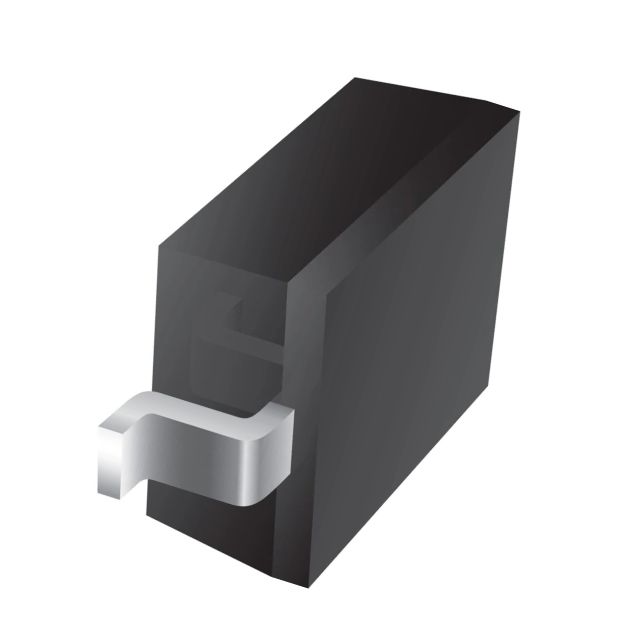

| Component Housing Style | SC-76, SOD-323 | |
| Vendor Package Type | SOD-323 |
Description
Shows reverse leakage current noted at 120 µA @ 700 mV at Vr. Maximum Zzt impedance of 100 Ohms ensures circuit reliability. Mounting configuration Surface Mount for structural stability. Temperature range 150°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case SC-76, SOD-323 that offers mechanical and thermal protection. Type of package SOD-323 that preserves the integrity of the device. Maximum power capability 300 mW for safeguarding the device. Product status Active concerning availability and lifecycle. Supplier package type SOD-323 for component selection. Precision tolerance level ±5% in manufacturing processes. Maximum forward voltage drop Vf at If 900 mV @ 10 mA for diodes. Typical Zener voltage Vz 2.2 V for voltage stabilization.
