Description

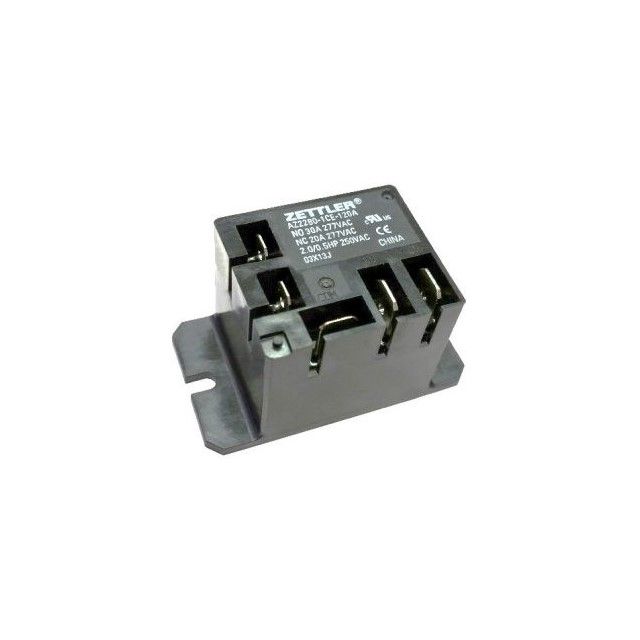

Complies with the criteria of entities acknowledged as CUR, UL, VDE. Supports coil current measured at 77 mA. Includes coil insulation rated at Class F to ensure thermal and electrical reliability. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 12VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (1 Form A). Constructed from the contact material known as Silver Cadmium Oxide (AgCdO). Supports a contact current rating of 40 A. The maximum switching load 11080VA, 840W for enhanced circuit performance. Mounting configuration Chassis Mount for structural stability. Needs a voltage of 9 VDC for effective activation. Requires a release voltage of 1.2 VDC for reliable functioning. Time duration 15 ms for the response upon activation. Temperature range -55°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 10 ms for reset and reaction. Classification series for the product or component AZ2280. The switch's voltage specification 277VAC, 28VDC - Max as per electrical regulations. Type of termination Quick Connect - 0.187"/0.250" for connector or device.
