Description

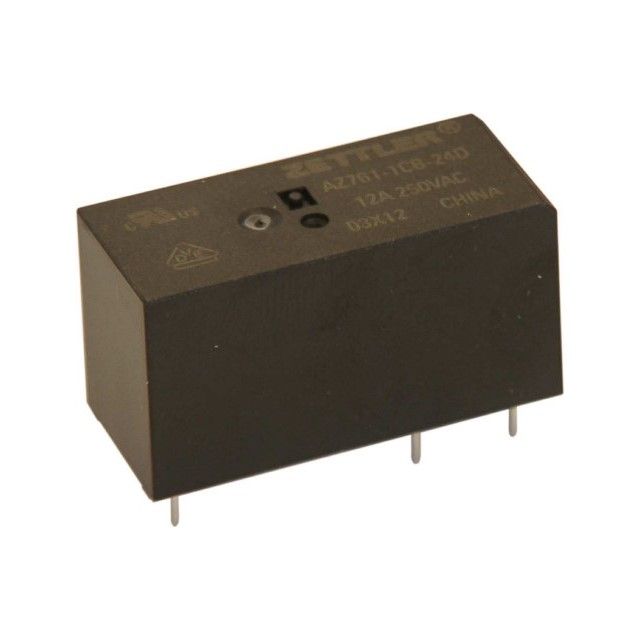

Complies with the criteria of entities acknowledged as CUR, UL, VDE. Supports coil current measured at 80.6 mA. Includes coil insulation rated at Class F to ensure thermal and electrical reliability. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 5VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (1 Form A). Constructed from the contact material known as Silver Tin Oxide (AgSnO). Supports a contact current rating of 12 A. The maximum switching load 3324VA, 360W for enhanced circuit performance. Mounting configuration Through Hole for structural stability. Needs a voltage of 3.5 VDC for effective activation. Requires a release voltage of 0.5 VDC for reliable functioning. Time duration 15 ms for the response upon activation. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 8 ms for reset and reaction. Ingress protection level Sealed - Fully for sealing. Classification series for the product or component AZ761. The switch's voltage specification 440VAC, 125VDC - Max as per electrical regulations. Type of termination PC Pin for connector or device.
