Description

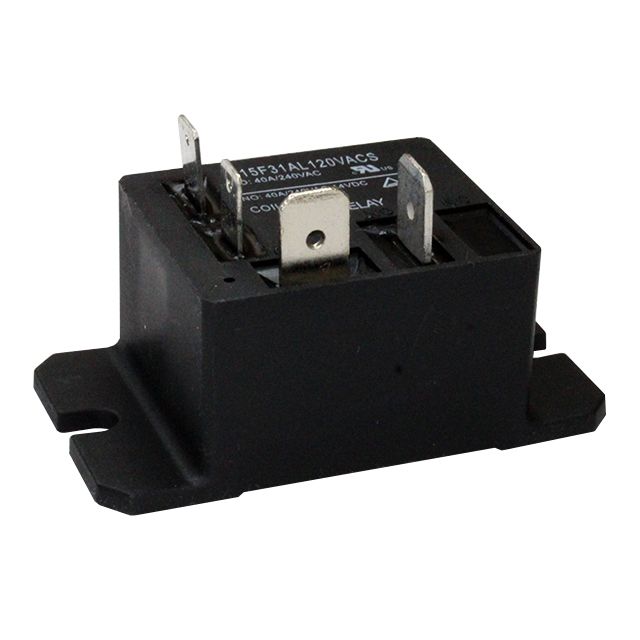

Complies with the criteria of entities acknowledged as cURus, TUV. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Supports coil current measured at 39.5 mA. Includes coil insulation rated at Class F to ensure thermal and electrical reliability. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 120VAC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (1 Form A). Constructed from the contact material known as Silver Tin Oxide (AgSnO). Supports a contact current rating of 40 A. The maximum switching load 11080VA, 4400W for enhanced circuit performance. Mounting configuration Chassis Mount for structural stability. Needs a voltage of 90 VAC for effective activation. Requires a release voltage of 36 VAC for reliable functioning. Time duration 15 ms for the response upon activation. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 10 ms for reset and reaction. Ingress protection level Sealed - Fully for sealing. Classification series for the product or component J115F3. The switch's voltage specification 277VAC, 110VDC - Max as per electrical regulations. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type of termination Quick Connect - 0.187"/0.250" for connector or device. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
