Description

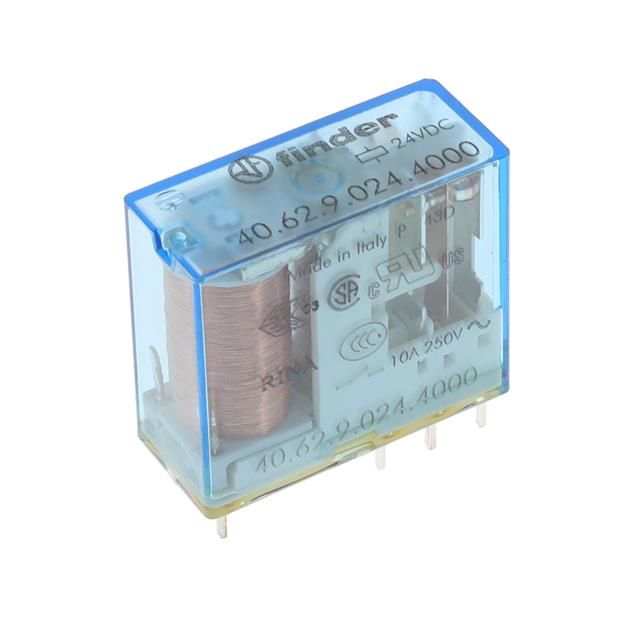

Complies with the criteria of entities acknowledged as CCC, CSA, cURus, EAC, ENEC, RINA. Supports coil current measured at 27 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 24VDC for reliable functionality. Utilizes a contact configuration categorized as DPDT (2 Form C). Constructed from the contact material known as Silver Tin Oxide (AgSnO). Supports a contact current rating of 10 A. The maximum switching load 4000VA for enhanced circuit performance. Mounting configuration Socketable for structural stability. Needs a voltage of 17.5 VDC for effective activation. Requires a release voltage of 2.4 VDC for reliable functioning. Time duration 7 ms for the response upon activation. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 3 ms for reset and reaction. Ingress protection level Sealed - Flux Protection for sealing. Classification series for the product or component 40. The switch's voltage specification 400VAC - Max as per electrical regulations. Type of termination Plug In for connector or device.
