Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

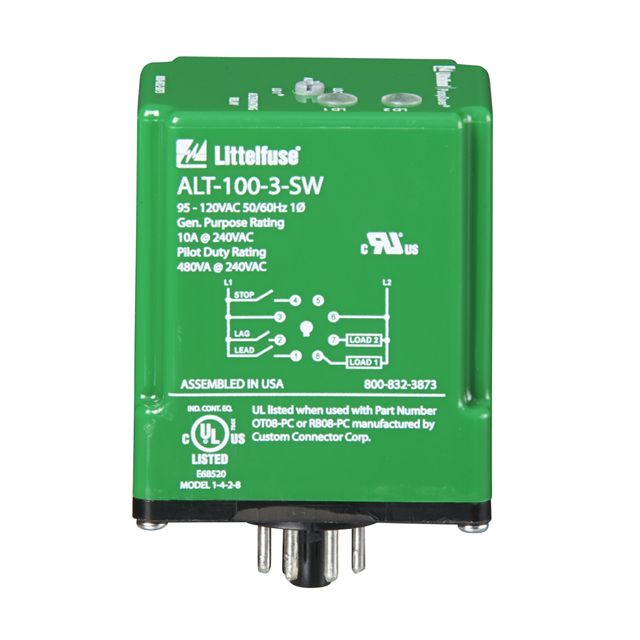

| Product Series Line | ALT-XXX-3-SW | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Attachment Mounting Style | Socketable | |
| Inductor Operating Volts | 95 ~ 120VAC | |
| Switch Contact Layout | DPDT (2 Form C) | |
| Pin Ampere Capacity | 10 A | |
| Switch Rated Volts | 240VAC - Nom | |
| Maximum Switch Load | 2400VA | |
| Electromagnet Amp Draw | - | |
| Electromagnetic Coil Design | Latching, Single Coil | |
| Key Product Highlights | Lighted Indicator | |
| Lead Termination Type | Plug In, 8 Pin (Octal) | |
| Sealing Protection Grade | - | |
| Wire Coil Cover | - | |
| Minimum Activation Volts | - | |
| Release Voltage Level | - | |
| Activation Response Time | - | |
| Reset Response Duration | - | |
| Ambient Temp Range | -40°C ~ 70°C | |
| Pin Alloy Composition | - | |
| Certification Body | CE, UL | |
| Electromechanical Relay Style | Impulse | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Complies with the criteria of entities acknowledged as CE, UL. Designed with a coil type classified as Latching, Single Coil for optimal electrical efficiency. Operates with a coil voltage of 95 ~ 120VAC for reliable functionality. Utilizes a contact configuration categorized as DPDT (2 Form C). Supports a contact current rating of 10 A. Equipped with features categorized as Lighted Indicator. The maximum switching load 2400VA for enhanced circuit performance. Mounting configuration Socketable for structural stability. Temperature range -40°C ~ 70°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay Impulse for controlling electrical circuits. Classification series for the product or component ALT-XXX-3-SW. The switch's voltage specification 240VAC - Nom as per electrical regulations. Type of termination Plug In, 8 Pin (Octal) for connector or device.
