Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | SIRIUS 3RQ3 | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Attachment Mounting Style | DIN Rail | |
| Inductor Operating Volts | 24VDC | |
| Switch Contact Layout | SPDT (1 Form C) | |
| Pin Ampere Capacity | 3 A | |
| Switch Rated Volts | 250VAC - Max | |
| Maximum Switch Load | 750VA | |
| Electromagnet Amp Draw | - | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | Lighted Indicator | |
| Lead Termination Type | Spring Terminal | |
| Sealing Protection Grade | - | |
| Wire Coil Cover | - | |
| Minimum Activation Volts | - | |
| Release Voltage Level | - | |
| Activation Response Time | 12 ms | |
| Reset Response Duration | 13 ms | |
| Ambient Temp Range | -25°C ~ 60°C | |
| Pin Alloy Composition | Silver Tin Oxide (AgSnO) | |
| Certification Body | CCC, CSA, EAC, UL | |
| Electromechanical Relay Style | General Purpose | |
| Quality Grade Level | - | |
| Certification Qualification | - |

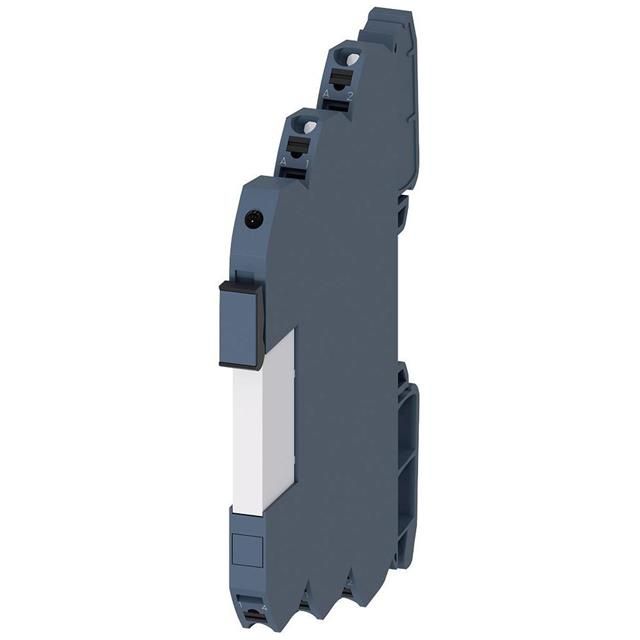

Description
Complies with the criteria of entities acknowledged as CCC, CSA, EAC, UL. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 24VDC for reliable functionality. Utilizes a contact configuration categorized as SPDT (1 Form C). Constructed from the contact material known as Silver Tin Oxide (AgSnO). Supports a contact current rating of 3 A. Equipped with features categorized as Lighted Indicator. The maximum switching load 750VA for enhanced circuit performance. Mounting configuration DIN Rail for structural stability. Time duration 12 ms for the response upon activation. Temperature range -25°C ~ 60°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 13 ms for reset and reaction. Classification series for the product or component SIRIUS 3RQ3. The switch's voltage specification 250VAC - Max as per electrical regulations. Type of termination Spring Terminal for connector or device.
