Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 501 | ₹ 1,666.08000 | ₹ 8,34,706.08 |
| 252 | ₹ 1,700.79000 | ₹ 4,28,599.08 |
| 102 | ₹ 1,735.50000 | ₹ 1,77,021.00 |
| 51 | ₹ 1,780.00000 | ₹ 90,780.00 |
| 27 | ₹ 1,832.51000 | ₹ 49,477.77 |
| 12 | ₹ 1,889.47000 | ₹ 22,673.64 |
| 3 | ₹ 2,117.31000 | ₹ 6,351.93 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 858 | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Attachment Mounting Style | Socketable | |
| Inductor Operating Volts | 230VAC | |
| Switch Contact Layout | DPDT (2 Form C) | |
| Pin Ampere Capacity | 12 A | |
| Switch Rated Volts | 250VAC - Max | |
| Maximum Switch Load | 3000VA | |
| Electromagnet Amp Draw | 11 mA | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | Lighted Indicator | |
| Lead Termination Type | Plug In | |
| Sealing Protection Grade | - | |
| Wire Coil Cover | - | |
| Minimum Activation Volts | - | |
| Release Voltage Level | - | |
| Activation Response Time | 10 ms | |
| Reset Response Duration | 8 ms | |
| Ambient Temp Range | -40°C ~ 55°C | |
| Pin Alloy Composition | Silver Nickel (AgNi) | |
| Certification Body | - | |
| Electromechanical Relay Style | General Purpose | |
| Quality Grade Level | - | |
| Certification Qualification | - |

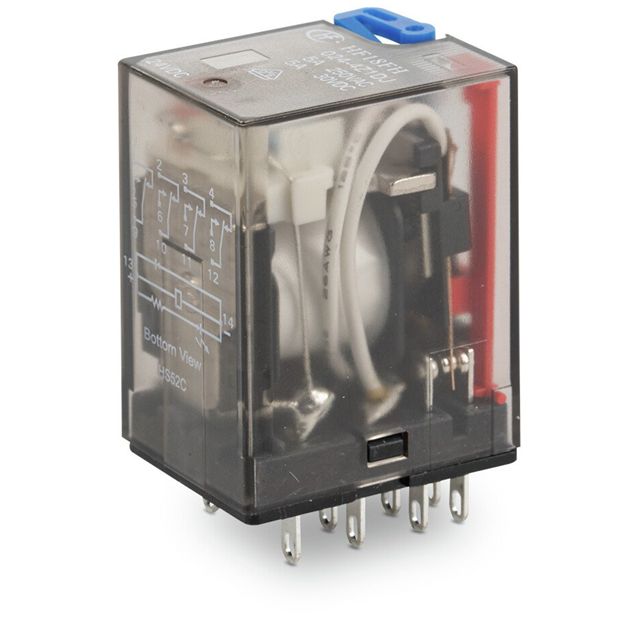

Description
Supports coil current measured at 11 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 230VAC for reliable functionality. Utilizes a contact configuration categorized as DPDT (2 Form C). Constructed from the contact material known as Silver Nickel (AgNi). Supports a contact current rating of 12 A. Equipped with features categorized as Lighted Indicator. The maximum switching load 3000VA for enhanced circuit performance. Mounting configuration Socketable for structural stability. Time duration 10 ms for the response upon activation. Temperature range -40°C ~ 55°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 8 ms for reset and reaction. Classification series for the product or component 858. The switch's voltage specification 250VAC - Max as per electrical regulations. Type of termination Plug In for connector or device.
