Description

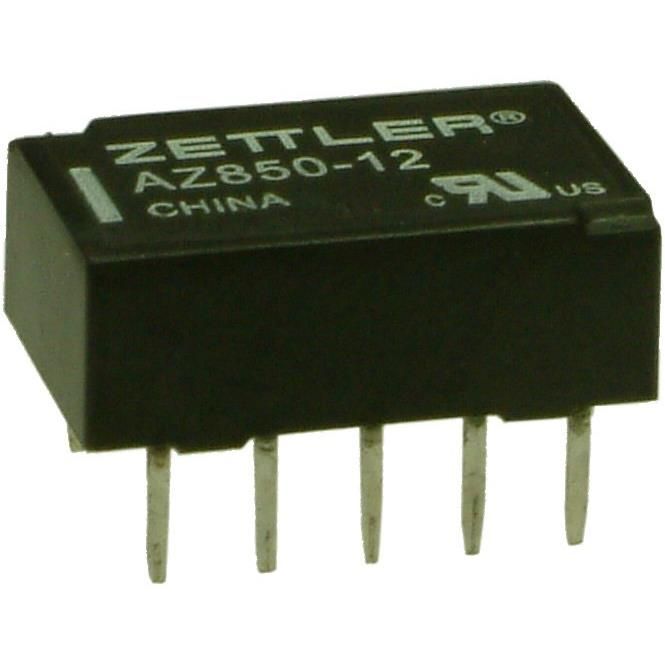

Complies with the criteria of entities acknowledged as CUR, UL. Supports coil current measured at 8.3 mA. Designed with a coil type classified as Latching, Single Coil for optimal electrical efficiency. Operates with a coil voltage of 12VDC for reliable functionality. Utilizes a contact configuration categorized as DPDT (2 Form C). Constructed from the contact material known as Silver Palladium (AgPd), Gold (Au). Supports a contact current rating of 1 A. The maximum switching load 250VA, 220W for enhanced circuit performance. Mounting configuration Through Hole for structural stability. Needs a voltage of 9 VDC for effective activation. Requires a release voltage of 1.2 VDC for reliable functioning. Time duration 2 ms for the response upon activation. Temperature range -40°C ~ 70°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 1 ms for reset and reaction. Ingress protection level Sealed - Fully for sealing. Classification series for the product or component AZ850. The switch's voltage specification 250VAC, 220VDC - Max as per electrical regulations. Type of termination PC Pin for connector or device.
